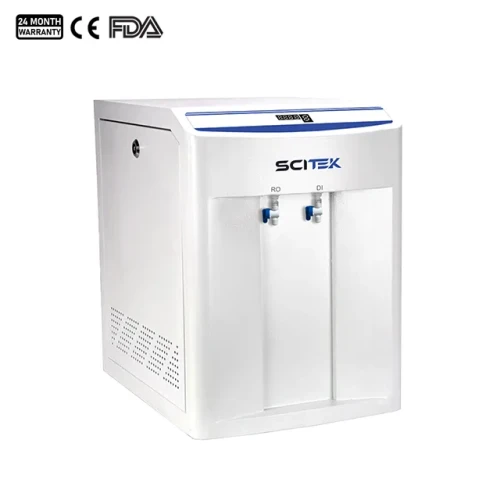

Deionized Water Purifier WP-D10U Scitek Global

Deionization is performed when pure water needs to be dispensed immediately. Deionization is critical when the water is about to be used because the very high purity can degrade quickly.
Deionized water purifiers work by replacing positive and negative molecules in water with hydrogen molecules (positively charged) and hydroxyl molecules (negatively charged). In effect, the removal of organic matter through filtration improves water quality and prevents scale deposits. For this reason, DI water machines are one of the most popular water treatment options in the laboratory and medical industries.

Deionized Water Purifier Features:

1.       The deionized water purifier has power indicator, pump work indicator, low pressure indicator and system flushing indicator functions.
2.       Using imported ion filtration membranes and high-pressure, silent pure water pumps, the operation quality is more reliable and it is applicable to a wider range of water quality.
3.       It has system flushing function: every time before turning on the water machine, di water machine will automatically flush for 30 seconds. And then the system will start to make water.
4.       The di water machine has system protection function: when the water pressure is too low or there is no water. The equipment automatically shuts down. The water source comes in, the equipment automatically turns on.
5.       Equipped with real-time online TDS monitoring for DI water, meeting the quality control requirements of DI water supply in laboratory and analytical applications.
Suggestion:
1.       The quality of the incoming water affects the quality of the outgoing water and the service life of the filter column;
2.       When the source water quality is poor (TDS is greater than 200ppm), the RO pure water quality will drop to above 10μs/c㎡;
3.       When the raw water quality TDS>500, it is recommended to use a water softener;
Specification

Specification Parameter	Value / Details
Water Supply Requirement	Tap water: TDS<200ppm; Water pressure >0.1Mpa; Water temperature: 5-45℃
Pure Water Quality - Conductivity	0.1us/cm (25℃)
Pure Water Quality - PH value (25℃)	None
Pure Water Quality - Oxidizable (as O)	Technical requirements: ≦0.08mg/L; Test results: ≦0.08mg/L
Pure Water Quality - Evaporation Residue (105±2℃)	Technical requirements: ≦1.0mg/L; Inspection results: 0.7mg/L
Pure Water Quality - Inspection Basis	GB/T6682-2008
Power Consumption	25W
Water Output Speed	10L/h
Control System	Operation mode display: power, water shortage, flushing, full water, inlet water quality monitoring, RO water quality and temperature, UP water quality and temperature, etc.
Safety Performance	Automatically enters standby state when there is no water or low water pressure, and enters standby state when the system is full of water (constant pressure).
Purification System	Pretreatment unit, external softening filter (recommended in places with high raw water hardness); 1μm deep PP filter element*2 + precision activated carbon filter element
RO Reverse Osmosis Unit	American original RO reverse osmosis membrane/membrane group
Post Purification Unit	Purification column
Standard Accessories	Host + accessory package + 3.2G pressure barrel
External Size (W×D×H)(mm)	Water Purifier: 340x460x480mm Pressure Tank: 245x245x390mm
Shipping Size (W×D×H)(mm)	Water Purifier: 535x435x550mm Pressure Tank: 245x245x360mm
Net Weight / Gross Weight	Water Purifier: 23kg/25kg Pressure Tank: 2kg/3kg

Function Instructions & Working Status

Display / Working Status	Detailed Instructions
Wash (F)	1. The power indicator light comes on when the machine is turned on, and it flushes automatically for 30 seconds; 2. After 6 hours of cumulative water production, if there is no flushing in the middle, it will automatically flush for 30 seconds; 3. After exiting from the water shortage program, it will automatically flush for 30 seconds; 4. The lower two digits of the small digital tube display the remaining backwash time, and the clock symbol flashes once a second. (High-pressure pump works, water inlet valve opens, flushing valve opens)
Water Production	1. The lower two digits of the small digital tube display the current conductivity value (the decimal point is not displayed); 2. The measured conductivity value is greater than 50, and in the buzzer mode, the buzzer beeps; 3. Conductivity measurement is a process that is susceptible to interference, so please install the probe into the pipeline for measurement, otherwise the accuracy will be affected; 4. There are bubbles in the pipeline, which will also affect the accuracy of the conductivity. Please pay attention to exhaust when reinstalling. (High-pressure pump is working, water inlet valve is open, flushing valve is closed)
Lack of Water (O)	1. When the low-pressure switch detects that the raw water pressure is lower than the set value, the pure water machine enters the water shortage program and the buzzer sounds; 2. The conductivity value is neither measured nor displayed. (High-pressure pump stops, water inlet valve closes, flushing valve closes)
Overhaul (E)	The instrument is set to a 12-hour working system to prevent forgetting to shut down the machine after work. If more than 12 hours have passed, the deionized water purifier maintenance symbol will appear and the work will stop to protect the instrument. If you need to continue working, just restart it. (High-pressure pump stops, water inlet valve closes, flushing valve closes)
