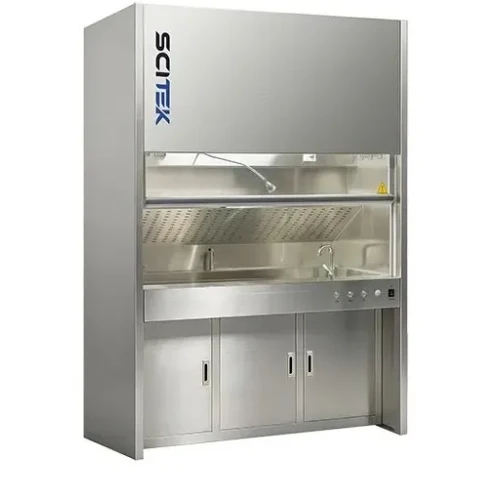

Pathology Workstation/Grossing Station, Closed Type
Workstations, accessories, and replacement parts for use during dissections, autopsies, necropsies, and other pathological procedures. Products include grossing/trimming stations and dissection tables, built-in sink and ventilation system.
Feature:
1.
Odor
suction system design and air filtration system, which can efficiently
exhaust harmful gases, low-noise, with powerful exhaust.
2.
Easy
filter replacement design, convenient for maintenance.
3.
UV
sterilization function and timing function can be set by appointment.
4.
Workbench
flushing system, convenient for cleaning and easy waste discharge.
5.
Whole 304
stainless steel material design, rust resistant and corrosion resistant.
Specification
|
Parameter / Feature
|
PW-1000F
|
PW-1500F
|
PW-1800F
|
|
Type
|
Closed type, with motorized glass
door
|
Closed type, with motorized glass
door
|
Closed type, with motorized glass
door
|
|
External Size
(W×D×H)
|
1000×800×2350 mm
|
1500×800×2350 mm
|
1800×800×2350 mm
|
|
Working Surface Size
|
895×430×50 mm
|
1395×430×50 mm
|
1695×430×50 mm
|
|
Work Surface Height
|
900 mm
|
900 mm
|
900 mm
|
|
Exhaust Airflow
Volume
|
1000–1200 m³/h
|
1000–1200 m³/h
|
1000–1200 m³/h
|
|
Main Body &
Work Surface
|
304 stainless steel
|
304 stainless steel
|
304 stainless steel
|
|
LED Lamp Power
|
24W × 1
|
36W × 1
|
36W × 1
|
|
UV Lamp Power
|
15W × 1
|
15W × 1
|
20W × 1
|
|
Power Supply
|
AC 220±10%V, 50/60 Hz; 110±10% V,
60 Hz
|
AC 220±10%V, 50/60 Hz; 110±10% V,
60 Hz
|
AC 220±10%V, 50/60 Hz; 110±10% V,
60 Hz
|
|
Power Consumption
|
700 W
|
700 W
|
700 W
|
|
Shipping Size
(W×D×H)
|
1180×910×2560 mm
|
1680×910×2560 mm
|
1980×910×2560 mm
|
|
Gross Weight (G.W.)
|
290 kg
|
360 kg
|
415 kg
|
Standard
Accessories: LED lamp ×1, UV lamp ×1, Spotlight ×1, Waterproof
socket ×2, Adjustable hot & cold water tap (requires optional water heater
for hot water), Telescopic faucet, Stainless steel water sink, Magnetic tool
holder, Activated carbon filter, and 4m exhaust PVC duct (Diameter: 300 mm).
Optional
Accessories: 316L stainless steel work surface (2 mm
thickness), Pulverizer, Camera, 25x magnifier, Electrical water heater, and
External exhaust blower.
