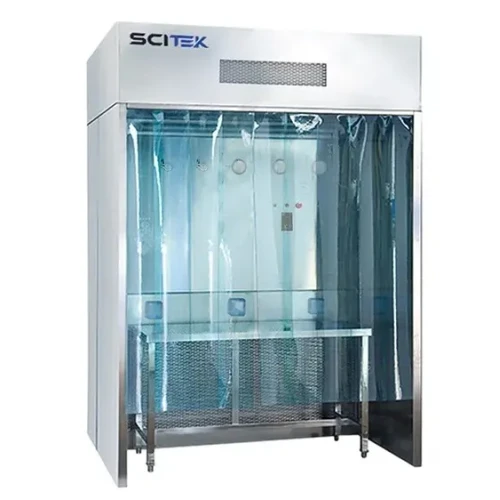

Dispensing Booth, Sampling or Weighing Booth
The dispensing booth
is a local purification equipment dedicated to places such as pharmaceuticals,
microbiological research and scientific experiments. It provides a kind of
vertical, unidirectional airflow that produces negative pressure in the working
area, part of the clean air circulates in the working area, part is discharged
to the nearby area to prevent cross-contamination, to ensure the high
cleanliness in the working area.
Feature:
1.
Customized design is welcome.
2.
The touch LCD control panel control
the start and stop of the fan, and adjust the wind speed.
3.
Differential pressure gauge is
equipped to real-time monitor the filters.
4.
Uniform flow design of main working
area can protects the operators and prevent environmental pollution and cross
contamination of products.
5.
There is an exhaust adjustment plate
inside the air supply box, which can adjust the exhaust volume within a
reasonable range.
6.
Dispensing booth (sampling or
weighing booth) has primary filters, medium efficiency filters and HEPA filters
to keep air cleanliness of work area.
Specification
|
Parameter
|
DB-1000
|
DB-1300
|
DB-1500
|
|
External Size
(W×D×H) (mm)
|
1000×1350×2400
|
1300×1350×2400
|
1500×1350×2400
|
|
Internal Size
(W×D×H) (mm)
|
900×850×1950
|
1200×850×1950
|
1400×850×1950
|
|
Air Velocity
|
0.38 - 0.58 m/s
|
0.38 - 0.58 m/s
|
0.38 - 0.58 m/s
|
|
Supply Air
Volume
|
1800 m³/h
|
2600 m³/h
|
3000 m³/h
|
|
Exhaust Air
Volume
|
10% ~ 15%
|
10% ~ 15%
|
10% ~ 15%
|
|
HEPA Filter Size
(W×D×H) (mm)
|
720×590×90
|
1020×590×90
|
1220×590×90
|
|
Clean Level
|
ISO 5 (Class 100)
|
ISO 5 (Class 100)
|
ISO 5 (Class 100)
|
|
Illumination
|
≥300 lux
|
≥300 lux
|
≥300 lux
|
|
Sound Emission
|
≤75 dB
|
≤75 dB
|
≤75 dB
|
|
Power Consumption
|
0.35 KW
|
0.55 KW
|
0.75 KW
|
|
Power Supply
|
AC 3-Phase 380V/50Hz
(Optional: AC 1-Phase 220/110V, 50Hz)
|
AC 3-Phase 380V/50Hz
(Optional: AC 1-Phase 220/110V, 50Hz)
|
AC 3-Phase 380V/50Hz
(Optional: AC 1-Phase 220/110V, 50Hz)
|
|
Net / Gross
Weight (kg)
|
290 / 320
|
380 / 420
|
470 / 520
|
|
Shipping Size
(W×D×H) (mm)
|
1200×1550×2700
|
1500×1550×2700
|
1700×1550×2700
|
|
Shipping Volume
(m³)
|
5.1
|
6.3
|
7.1
|
