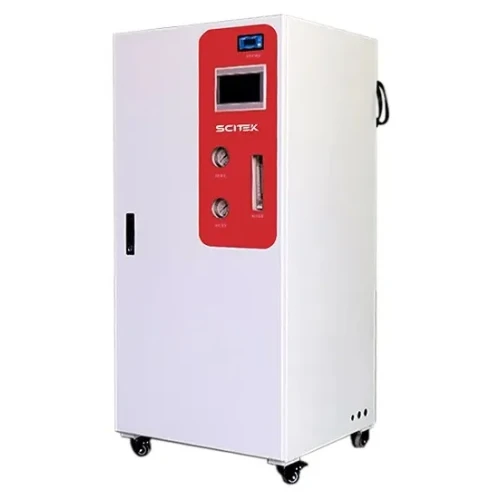

Medical Water Purifier WP-HD Series Scitek Global
Features
1. The control system is programmed based on Mitsubishi program,
with a simple programming structure and centralized central control.
The medical water purifier system uses hardware for automatic control
and displays the status of various processes.
2. Even without programming experience, the equipment can be
controlled to start and stop.
3. The touch screen has one-touch start and stop functions. The
one-touch start function can be turned off when maintenance personnel leave in
the evening, making it convenient for on-site maintenance personnel.
4. It has both automatic and manual control modes, with fault
recognition, voltage safety, overload protection, automatic protection, and
alarm functions. In the event of local problems, the system will automatically
shut down.
5. The water quality of the produced water is displayed in
real-time, making it intuitive.
6. The medical water purifier system has a compact
structure, occupying a small area, effectively saving space, and is designed to
be simple, reliable, and convenient.
7. The medical water purifier uses standardized, universal, and
systematic components, making it easy to disassemble, replace, and clean parts.
8. It uses non-polluting UPVC materials.
9. The medical water purifier has low energy consumption,
effectively saving energy, operates reliably, with the water supply pipeline
closed, and stable water quality in the outlet.
10. The consumables have a long lifespan, low cost of water
production, and can run automatically continuously.
Specification
|
Specification Parameter
|
WP-HD100M
|
WP-HD500M
|
WP-HD2000M
|
|
Water Output
|
100L/H
|
500L/H
|
2000L/H
|
|
Water Quality
(Conductivity)
|
≤ 15us/cm
|
≤ 15us/cm
|
≤ 15us/cm
|
|
System Recycle Rate
|
≥60%
|
≥60%
|
≥60%
|
|
Endotoxin, Bacteria
|
Removal rate ≥99.9%
|
Removal rate ≥99.9%
|
Removal rate ≥99.9%
|
|
Sterilization
Method
|
Ozone & UV
disinfection
|
Ozone & UV
disinfection
|
Ozone & UV
disinfection
|
|
Water Inlet
Requirements
|
City tap water,
DN20
Pressure: 0.2~0.5Mpa
|
City tap water,
DN20
Pressure: 0.2~0.5Mpa
|
City tap water,
DN20
Pressure: 0.2~0.5Mpa
|
|
Inlet Water
Temperature
|
5-35℃
|
5-35℃
|
5-35℃
|
|
Working Environment
|
5-35℃
|
5-35℃
|
5-35℃
|
|
Relative Humidity
|
≤80%RH
|
≤80%RH
|
≤80%RH
|
|
Power Supply
|
220±10% V, 50 Hz
|
220±10% V, 50 Hz
|
380V, 50HZ
|
|
Consumption
|
0.5KW
|
4KW
|
6KW
|
|
External Size
(W×D×H)(mm)
|
690x690x1470
|
1420x680x1200;
1100x700x1420
|
1660x800x1700;
1300x800x2010
|
