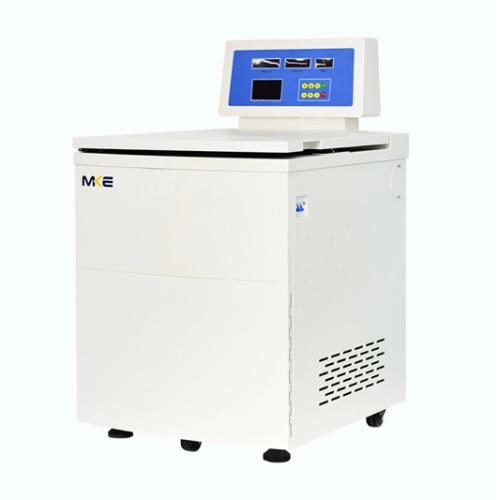

Floor standing refrigerated centrifuge FR10(old model:GR-80C)
which can process the large capacity fixed rotor such as 6*1000ml and can also
process the swing out rotor, widely used in the the fields of blood stations,
pharmaceutical factories, biochemistry, biological products, etc. It is the
ideal instrument for blood separation, protein precipitation and cell
collection and conforms to CE security certification, ISO9001 and 13485 quality
certifications.
Design:
● Autoclave-able steel body and stainless steel chamber with super
hard aluminum alloy rotor for good sealing and sterilization resistance.
● Microprocessor control, frequency conversion motor drive .
● Observations window on lid for speed calibration and noise
measurement.
● Touch color large screen display the parameters of Speed, Timer,
RCF, Rotors, Program(Memory), Acceleration& Deceleration information and
Error code information.
● With wind cover shield, which covers the rotor and helps to
prevent air currents from affecting the specimens being processed.
● The rotor is made of super hard aluminium alloy by special
technology, with good sealing performance and unlimited high temperature and
high pressure sterilization resistance.
● The door cover and body are equipped with double-layer silicone
seal ring.
User friendly:
● CFC-free cooling system with high efficiency environmental
protection refrigeration system and dual circuit control for precise
temperature control
● Programmable and storable, stores up to 30 programs and provides
direct user access with one keystroke save. The stored parameter: combination
remains in the memory even after the centrifugation has been switched off.
● Provides the 10-speed acceleration and deceleration curves, to
effectively avoid secondary sedimentation, with better centrifugation effect.
● Automatic lid-locking and holding during rotor run
● Easily exchangeable rotors, special rotor connector which makes
it easy to load and unload rotor.
● Self-diagnostic system with high-strength chamber-coating and
protective
● "Mute" patented technology, the highest speed
operation is less than 58 decibels.
● Automatic rpm/rcf conversion
● Automatic rotor identification system, coded rotor
identification prevents the rotor from over speeding.
Safety:
● Produced according to international safety regulations (e.g. IEC
61010)
● Safety Electrical lid interlock, door cannot open when rotor is
running and machine won’t run when lid open and error code appears.
● Automatic rotor locking function, no need to tighten the rotor
head, automatic rotor identification system to prevent the wrong rotor on the
run, effective protection of personnel safety and stability of the centrifuge.
● Emergency lid-lock release when power failure (very useful in an
unexpected power interruption).
● Gas hinge for lid drop protection.
● Equipped with door cover protection, over speed, over current
and advanced electronic unbalance detection system and other safety design, can
be real-time monitoring of the centrifuge process to ensure the safe operation
of the instrument.
Specification:
Max. Speed |
8000rpm |
Motor |
AC frequency conversion motor, direct drive |
Speed accuracy |
±10rpm |
Screen |
Touch LCD color+digital screen |
Max.Capacity |
6x1000ml |
Control |
advanced CPU control system |
Max. RCF |
11880xg |
Timer range |
1~99min59s |
Daily use program |
30 |
Temp accuracy |
±1℃ |
Temp.range (at RT 25℃) |
-20℃~40℃ |
Acceleration/ Deceleration Rate |
10 |
Noise |
<60dB(A) |
Power supply |
AC220v 50Hz 30A,6000w |
Net weight |
270kg |
Dimension |
860×730×1200mm(L×W×H) |
Rotor:
No. |
Rotor |
Capacity |
Max.speed |
Max. RCF |
Note |
NO.1 |
Fixed Angle Rotor |
6×500ml |
8000r/min |
11880xg |
PP/PC tube |
NO.2
