Liquid Nitrogen Filling Tank BF Series Scitek Global

Liquid Nitrogen Filling Tank BF Series Scitek Global

Liquid Nitrogen Filling Tank BF Series Scitek Global

0 Customer Review

Availability: Call For Price
Brand: Scitek Global

Highlights

Geometric volume (L) : 33; 55; 110; 165; 220; 250; 330; 550
Effective volume (L) : 30; 50; 100; 150; 200; 230; 300; 500
Tank external diameter (mm) : 404; 455; 556; 656; 656; 656; 806; 958

View More Info

Call For Price

Product Details
Review & Comments

Liquid Nitrogen Filling Tank BF Series Scitek Global

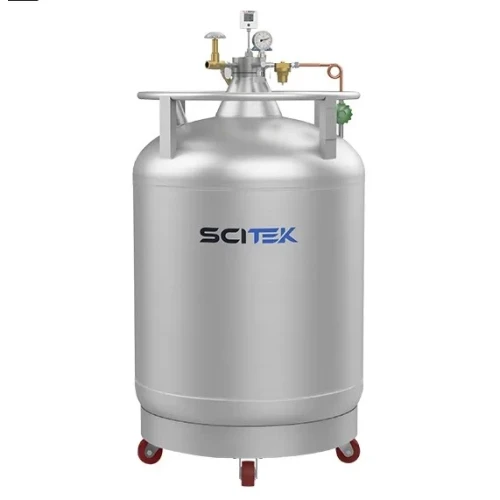

The self pressurized liquid nitrogen container is made of high-quality stainless steel. It utilizes the internal pressurization system of the container to vaporize a small amount of liquid nitrogen and generate pressure, thereby discharging the stored liquid nitrogen inside the container. The self pressurized liquid nitrogen container consists of a control structure and a tank body. The control components mainly include inlet (outlet) valves, vent valves, pressure boosting valves, safety valves, level gauges, pressure gauges, and casters. It is mainly used for transporting and storing liquid nitrogen, and can also be used as a cold source for other refrigeration devices. Currently, it is widely used in industries and fields such as mold industry, animal husbandry, medicine, semiconductor, food, aerospace, military, and low-temperature chemical industry.

Production process:
Each production process of the product has strict high-quality requirements. It adopts unique patented vacuum technology and multi-layer insulation technology, and the adsorbent is treated with regeneration to ensure the high quality of the vacuum layer; All welds are checked for leaks using a helium mass spectrometer; The product has undergone 100% liquid nitrogen testing; Unique polishing technology, beautiful appearance.

Specification

Parameter	LNC-30-50BF	LNC-50-50BF	LNC-100-50BF
Geometric volume (L)	33	55	110
Effective volume (L)	30	50	100
Tank external diameter (mm)	404	455	556
Height (mm)	850	960	1120
Empty weight (kg)	30	38	63
Static daily evap. rate (%/D)	3.2	2.2	1.2
Standard work pressure (Mpa)	0.05	0.05	0.05
Maximum working pressure (Mpa)	0.09	0.09	0.09
Infusion volume (L/min)	≥5 L/Min	≥5 L/Min	≥5 L/Min
Primary safety valve (Mpa)	0.099	0.099	0.099
Secondary safety valve (Mpa)	0.15	0.15	0.15
Pressure gauge range (Mpa)	0~0.25	0~0.25	0~0.25
