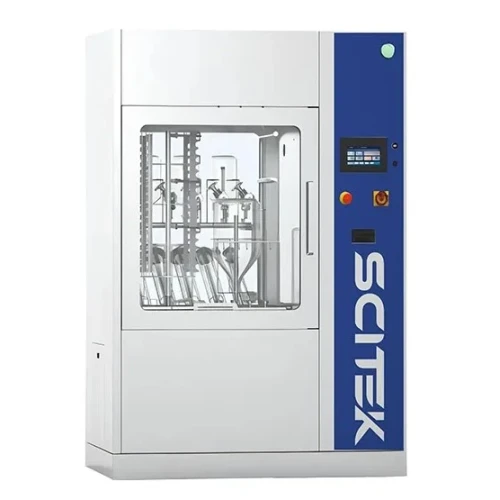

Our GMP washer is designed strictly
in accordance with GMP standards, which provides a traceable cleaning
process and standardized cleaning solution. It made
with pharmaceutical-grade materials, ensuring a safer and cleaner
production process. It is mainly used for cleaning key components, such as
fermentation tanks, large balloon bottles, large glass products, filling
and packaging machine parts, mixers, funnels, pallets, boxes,
table-ting tools and other items for the production of medicines,
diagnostics, cosmetics and food.
. Siemens PLC control system with
full color LCD touch screen
1. Built-in multiple cleaning programs and customizable programs,
capable of programming process cycles according to user requirements.
2. Preventive maintenance and identification and resolution of
faults, equipped with a built-in service diagnostic program, capable of
systematically verifying and rechecking the operation of components.
3. Reserve ERP/MES communication interface (LAN cable) to connect
with the SCADA system, providing free communication protocols, IP addresses,
point tables, and corresponding technical support to complete the SCADA data
acquisition tasks,
2. Advanced cleaning system
1. Highly efficient and energy-saving circulating water pump:
Made of AISI316L.
Casing and impeller undergo a
polished treatment to achieve a smoothness of Ra≤0.6μm, effectively eliminating
residual chemical substances.
Equipped with a variable frequency
startup control to prevent any impact on vessels and appliances during the
pump's startup moment.
2. The multi-channel chemical cleaning peristaltic pump can
automatically distribute cleaning agents into the chambers according
to programmed requirements. It is equipped with a low liquid level sensor
to monitor for any liquid shortage.
3. The cleaning basket rack is supplied with water using a single
or dual water supply method. After each cycle, the water in the drainage
pipeline is discharged.
4. The circulation pipeline is equipped with a pressure monitoring
system, and the screen displays the real-time water pressure of
the cleaning spray. When the cleaning water pressure is abnormal, the
operation of the circulation pump is temporarily paused.
5. The spray arm speed sensor monitors the real-time rotation
status of the spray arm. When the spray arm rotation is abnormal,
the operation of the circulation pump is temporarily paused.
6. The inner tank of the water tank is equipped with low liquid
level and high liquid level alarm devices to ensure the supply of
cleaning water.
Specification
| Model | GMP-600 | GMP-1200 | GMP-1600 |
|---|
| Capacity(L) | 688 | 1210 | 1690 |
| Control System | Siemens S7-1200 |
| Display | 7 inch LCD Touch screen |
| Standard Program | 20 |
| Permission Management System | Four level |
| Storage | USB port |
| Printer | Build in Printer |
| Cleaning System | Cleaning Temp Range | RT to 93℃ |
| Cleaning Method | Spray cleaning |
| Cleaning Agent Addition Channel | Double channel |
| Cleaning Agent Storage Capacity | 5L x 2units |
| Advanced Function | Audit tracking
Spray arm speed sensor,Pipeline pressure monitoring
Circulating pump variable frequency startup |
| Drying System | Drying Mode | Hot air injection via sprinkler by compressor fan |
| Drying Time Range | 15 to 30 mins |
| Drying Temp Range | RT to 120℃ |
| Air Volume | 270M3/H | 345M3/H | 420M3/H |
| Water Inlet Pipe | Quantity | 2 units |
| Material | 304 stainless steel |
| Water Pump | Brand | World-renowned brand |
| Flow Rate | ≥1000L/min |
| Structure | Material | AISI316L stainless steel |
| Door | Double-layered, hollow-tempered glass side-opening door with a stainless steel frame |
| Power Supply | 380V, 50/60Hz |
| Consumption | 22kW | 26kW |
| Internal Size(W×D×H)(mm) | 830X830X1000 | 1100X1100X1000 | 1300X1300X1000 |
| External Size(W×D×H)(mm) | 1540X950X1990 | 1825X1220X1990 | 2050X1420X1990 |
| Shipping Size(W×D×H)(mm) | 1700X1250X2240 | 2100X1550X2240 | 2350X1700X2240 |
| N.W./G.W. (kg) | 650/730 | 800/900 | 950/1070 |
