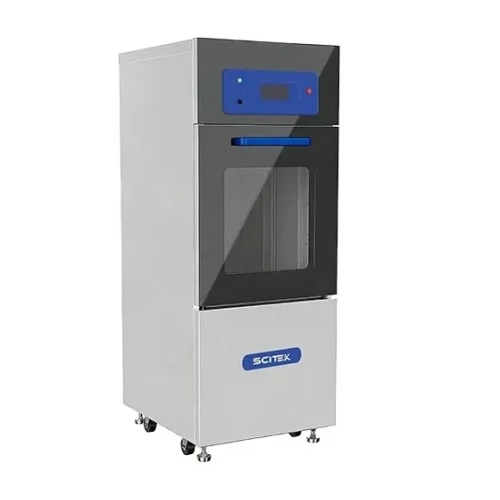

Automatic Glassware Washer, Basic  Scitek Global

Standardized Cleaning

1.       Dual Peristaltic Pumps：Disinfection effectiveness mainly depends on the correct performance of the washing phases and the neutralization of the treated material. SCITEK automatic glassware washers come equipped with two peristaltic pumps: one dedicated to dispensing the alkaline detergent during the cleaning phase and the other for dispensing the acid neutralizer during the neutralization phase.

2.       By controlling the cleaning process and monitoring key cleaning parameters through automatic program flow control, the automation and standardization of vessel cleaning can be achieved.

3.       Equipped with two water inlets controlled by electromagnetic valves, users have the option to select between tap water and purified water during the wash and rinse phases.

4.       The 360° spray mechanism ensures comprehensive internal and external cleaning of the container, eliminating dead spots and ensuring optimal cleaning effectiveness.

5.       The pure water inlet features an integrated booster pump, enabling direct suction of purified water without the need for an external booster.

6.       Consistency is maintained across different batches, as well as within each batch, ensuring the cleaning effect at every point remains uniform.

7.       Enables traceability management of cleaning data for enhanced record-keeping and accountability.

Drying System

1.       The forced-air "Drying System"

Comprised of an efficient hot air generator and a powerful fan, the system is directly managed by the programmer, enabling control over both operating time and temperature parameters. The microprocessor PLC system ensures intelligent management of the drying circuit, automatically adjusting the fan speed (thereby reducing power consumption) based on the temperature measured in the washing chamber. The efficient hot air temperature can be adjusted up to 120, enhancing the washing, rinsing, and sanitizing of glassware, as well as enabling faster drying.

2.       Patented TWINs System for Drying

The patented TWINs system integrates hot air with cleaning pipes, ensuring hot air reaches every corner with a 360-degree radius and no dead ends. It achieves synchronous drying of utensils and the circulation pipeline, preventing long-term moisture that can lead to bacterial growth within the pipeline.

Specification
