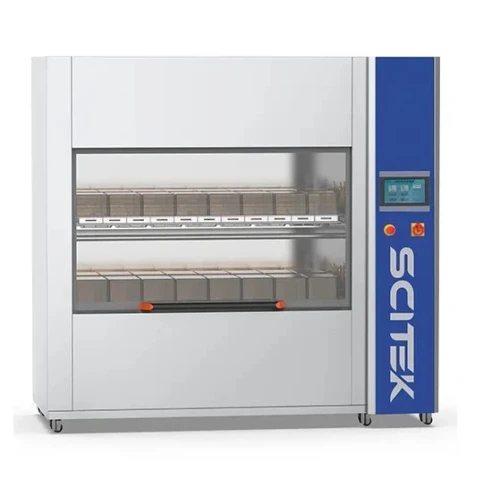

IVC Cleaning System Scitek Global
The use of an experimental animal cage cleaning machine during the cleaning process ensures the reliability of your research results.
Our system cleaning ensures the cleanliness of the animal facility. The perfect hygiene conditions are achieved through a high-quality system cleaning process.The fully automatic animal cage cleaning equipment is specifically designed based on the requirements of users in the experimental animal industry. It utilizes hot water combined with acidic or alkaline cleaning agents, high pressure, and high flow rate spraying method to achieve a fully automated spraying cleaning process for cages, cage covers, metal mesh frames, and water bottles.
Advantage of IVC Cleaning System:
1. Advanced Microcomputer control system with full color LCD touch screen
●The equipment is equipped with a PLC control system and a 10.2-inch touchscreen. The user can edit the cleaning program on the interface, such as cleaning water temperature, rinsing water temperature, cleaning time, rinsing time, and drainage time.
●Users can edit up to 24 different programs according to their needs. There are two cleaning modes available. One program combines alkaline cleaning and rinsing, while another program includes alkaline cleaning, acid neutralization, and high-temperature pure water rinsing.
2. Advanced cleaning system.
The equipment uses softened water as the working medium. Through a high-flow circulation pump, the water inside the cleaning chamber is circulated in the cleaning pipeline and sprayed onto the cage box through the spray arm, providing a powerful rinse for the items. The equipment's rinsing process involves directly spraying clean purified water from the water tank onto the cleaned cage box, achieving a clean rinsing effect. The high-temperature purified rinse water is recycled and used as the cleaning water for the next cycle, saving resources.
Cleaning way | Acidic cleaning | Alkaline cleaning |
|---|
Usage | Effectively removes urine stains and lime deposits, especially suitable for cleaning animal cages and water dispensers. | Effectively remove various organic residues in rodent cages. |
Material Compatibility | Suitable for materials such as polystyrene (PS), polycarbonate (PC), polyetherimide (PEI), and stainless steel. |
Automatic Spray Cleaning | Acidic liquid, highly efficient cleaning agent without surfactants | Alkaline liquid, an efficient cleaning agent that does not contain surfactants, phosphates and oxidants. It is recommended to use an acidic cleaning agent for neutralization after alkaline cleaning to avoid alkaline residues. |
Drying | Adequate rinsing will prevent limescale spots from forming on the surface after drying. Polysulfone (PS) materials must use surfactant-free cleaning agents |
Specification
|
Specification Category
|
Technical Details
|
|
Model &
Capacity
|
IVC-100 |
1200L
|
|
Display &
Programs
|
10.2 inch LCD
Touch Screen | 24 Standard Programs
|
|
Cleaning
System
|
Method: Spray
| Wash Temp: ≤50℃ | Rinse Temp: ≤80℃ (Adjustable)
|
|
Pump &
Spouts
|
Lotion Pump:
1100ml/min | Cleaning Spouts: ≥44 | Rinse Spouts: ≥86 units
|
|
Capacity
& Loading
|
2 Layers |
Max Height: 340mm/layer | Washable Cages: 28 units
|
|
Water Inlet
Pipe
|
1 Pc, 2m
Length, Food grade silicone tube
|
|
Water Outlet
Pipe
|
1 Pc, 2m
Length, PE
|
|
Water Pump
Specs
|
World-renowned
brand | Flow: 500L/min | Consumption: 1.5 kW
|
|
Structure
& Material
|
External
& Chamber: 304 Stainless Steel | Door: Single door
|
|
Mobility
& Foot
|
Four
universal casters at the bottom for easy movement
|
|
Power &
Utility
|
Power Supply:
380V, 50/60Hz | Total Consumption: 20kW
|
|
Dimensions
(WxDxH)
|
External:
2050x850x1950 mm | Shipping: 2200x1030x2170 mm
|
|
Weight (N.W.
/ G.W.)
|
850 kg / 900
kg
|
