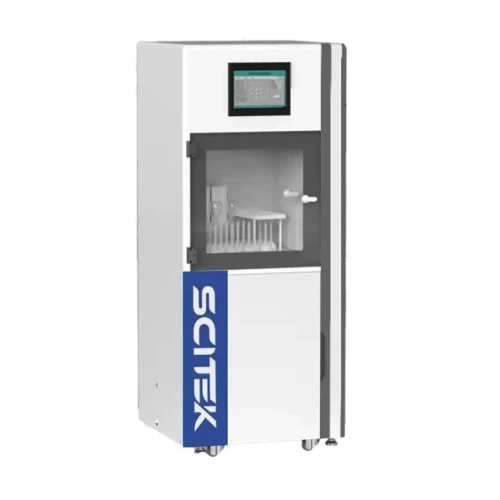

Vertical Acid Steam Cleaning System Scitek Global
The acid steam cleaning system can
safely and efficiently remove inorganic elemental residues from various
vessels such as Microwave digestion tubes, volumetric flask, triangular
flask, etc. It effectively reduces ion background and meets the
cleanliness requirements of vessels for trace inorganic element
detection using ICP-MS, atomic absorption, atomic fluorescence, and
other equipment. It improves experimental efficiency, reduces operational
risks, and protects the laboratory environment.
Acid Steam Cleaning System Advantage:
1. Environmentally friendly and
pollution-free.
The used acid or water does not flow back into the
original acid or water, but is stored in a waste liquid collector. It is
automatically monitored for pH and automatically neutralized before
being discharged when it reaches a neutral state.
Built-in EP exhaust gas absorption system can instantly
absorb a large amount of exhaust gas without the need for a fume hood.
2. Efficient acid vapor generation
and delivery
Multiple independent acid tanks, with each tank connected
to a dedicated acid vapor conduit. The spaces between the tanks are filled with
PTFE material, The spaces between the tanks are filled with
polytetrafluoroethylene (PTFE), facilitating temperature maintenance within the
acid tanks and minimizing acid vapor condensation, ensuring the rapid and
stable delivery of acid vapor into the vessels being cleaned.
Specification
|
Model
|
ASCS-3300
|
|
Capacity(L)
|
87L
|
|
Display
|
9.7"
Touch screen
|
|
Standard
Program
|
20
|
|
Permission
Management System
|
3
Level
|
|
Cleaning
|
Consumption
of Acid
|
70 mL
(1 mL/min)
|
|
Cleaning
≥49 units of 100mL microwave digestion tubes at once
|
|
Drying
|
Drying
system
|
Hot
air injection via Sprinkler
|
|
Drying
Time Range
|
0 to
300mins
|
|
Drying
Temp Range
|
RT to
100℃
|
|
Airflow
Rate for Drying
|
80
m³/h
|
|
Drying
Method
|
Hot
air injection via Sprinkler
|
|
Water
inlet pipe
|
Quantity
|
2
|
|
Length
|
3 m (
Customizable)
|
|
Material
|
PTFE
|
|
Water
Pump
|
Brand
|
World-renowned
brand
|
|
Flow
Rate
|
120
L/min
|
|
Consumption
|
0.75
kW
|
|
Structure
|
Material
|
External
|
304
stainless steel
|
|
Cleaning
chamber
|
PTFE
|
|
Door
|
Double-door
design, for enhanced safety.
|
|
Caster
|
Four
universal casters at the bottom of the instrument for easy movement
|
|
Total
Consumption
|
1.5 kW
|
|
Power
Supply
|
220/110V,
50/60Hz
|
|
External
Size(W×D×H)(mm)
|
682×663×1624
|
|
Shipping
Size(W×D×H)(mm)
|
880×860×1880
|
|
N.W./G.W.
(kg)
|
220/249
|
