Overhead Stirrer with TFT display Speed range : 40~2000rpm Model: WOHS-10 Pro Wiggens Price in Bangladesh

Overhead Stirrer with TFT display Speed range : 40~2000rpm Model: WOHS-10 Pro Wiggens Germany

0 Customer Review

Availability: Call For Price
Brand: Weggens Germany

Highlights

Speed range [rpm] 40~2000
Setting accuracy speed [rpm] 1
Deviation of speed measurement n > 300rpm ±3 %
Speed Display TFT display
Clockwise or counterclockwise of stirring Yes
Speed setting Touch key and turning knob
Time setting range 99h59min59sec
Temperature measuring range -10~350
Stirring quantity max [L / H2O] 15
Temperature measurement resolution 0.1
Working status indicator Standby (blue) , Running (green) , Alarm (red)
Power [W] 30
Motor principle Brushless DC motor
Torque max. at stirring shaft [N-cm] 15

View More Info

Call For Price

Product Details
Review & Comments

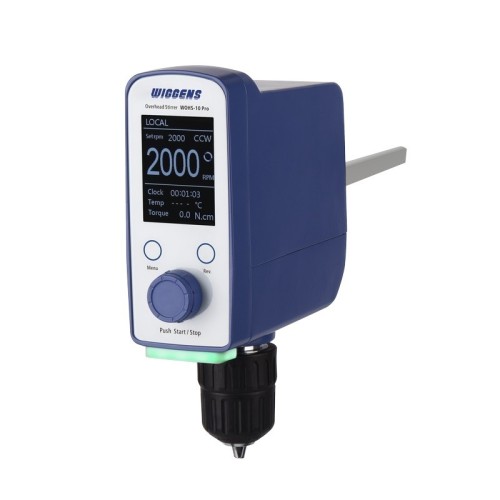

Overhead Stirrer with TFT display Speed range : 40~2000rpm Model: WOHS-10 Pro Wiggens Germany

Overhead Stirrers of the WOHS range are perfect for stirring and mixing applications. The devices are designed to surpass the requirements of laboratories and institutions around the world with their modern technology and high quality.

TFT Display
TFT display with vivid luminance is easy to read, even from a long distance.

Precise speed control
Easy operation of all parameters using the central turning knob and touch key.

Working status indicator
Standby (blue) , Running (green) , Alarm (red).

Brushless DC motor
for long life span, low maintenance and quiet running.

Keyless chuck
It allows you to quickly and easily remove the stirring elements without any tools.
Clamping range: 0.5-10mm.

RS232 / RS485
The stirrer comes equipped with RS 232 and RS485 interface to control and document all parameters.

Timer
0~99hr99min
Automatic timing function, after start the stirring , the display will automatically start the function: countdown the running time.

Temperature measurement
Temperature measuring range: -10~350℃.
Temperature measurement resolution: 0.1℃.

Direction of rotation
Clockwise or counterclockwise.

Specifications

Model	WOHS-10 Pro
Order No.	W3041010
Speed range [rpm]	40~2000
Setting accuracy speed [rpm]	1
Deviation of speed measurement n > 300rpm	±3 %
Speed Display	TFT display
Clockwise or counterclockwise of stirring	Yes
Speed setting	Touch key and turning knob
Time setting range	99h59min59sec
Temperature measuring range	-10~350
Stirring quantity max [L / H2O]	15
Temperature measurement resolution	0.1
Working status indicator	Standby (blue) , Running (green) , Alarm (red)
Power [W]	30
Motor principle	Brushless DC motor
Torque max. at stirring shaft [N-cm]	15
Stirring element fastening	Keyless chuck, easy to install and replace the shaft
Chuck range diameter [mm]	0.5~10
Hollow shaft, inner diameter [mm]	10.2
Fastening on stand	Extension arm
Housing material	Cast aluminum coating / thermoplastic polymer
Power supply	100~240VAC,50/60Hz
