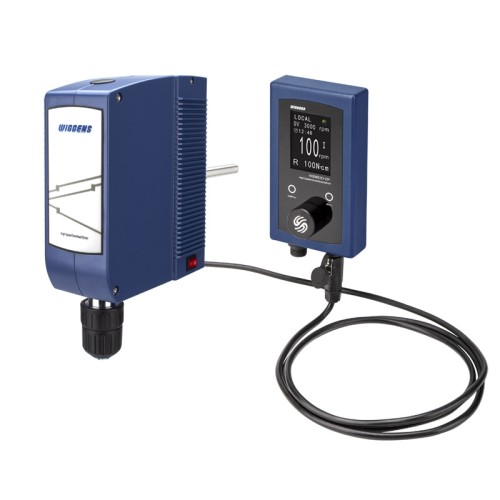

Stirrer Which is Remotely Controllable High Torque / High Speed Power:150 W Model: WB6000-DF Wiggens Germany

0 Customer Review
Highlights
  • Speed Display TFT display
  • Clockwise or counterclockwise of stirring Yes
  • Speed setting Touch key and turning knob
  • Power [W] 150
  • Stirring quantity max [L / H2O] 100
  • Motor principle Brushless DC motor
  • Torque max. at stirring shaft [N-cm] 2) 170(I) / 34(II)
  • Stirring element fastening Keyless chuck, easy to install and replace the shaft.
  • Chuck range diameter [mm] 0.5~10
  • Hollow shaft, inner diameter [mm] 10.2
  • Fastening on stand Extension arm
View More Info
Call For Price

Stirrer Which is Remotely Controllable High Torque / High Speed Power:150 W Model: WB6000-DF Wiggens Germany



Ideally perform your professional stirring tasks requiring high functionality, safety, and longevity. Prestige touch TFT controller, especially for applications where the remote controller is needed.

Features


> With all the functions and features of D-series overhead stirrers, vibration-free and silent operation.
> Equipped with a maintenance-free BLDC motor to generate smooth, quiet, and yet powerful stirring.
> Powerful torque capable of handling high viscosity tasks.
> Maintenance of constant motor speed by control system even under conditions of changing viscosity.
> Best effort function intelligently manages its stirring speed to keep stirring even if the workload is out of its capacity.
> Prevention of accidental spills or splashes thanks to microprocessor controlled smooth start and stop functions.

A through-shaft design allows for adjusting the impeller position to make height adjustment more convenient.

Keyless chuck
It allows you to quickly and easily remove the stirring elements without any tools. Clamping range: 0.5-10mm.

Specifications



Model

WB6000-DF

Order No.

100600F

Speed range [rpm] 1)

60~1200 (I)

1201~6000 (II)

Setting accuracy speed [rpm]

1

Deviation of speed measurement n > 300rpm

±3 %

Speed Display

TFT display

Clockwise or counterclockwise of stirring

Yes

Speed setting

Touch key and turning knob

Power [W]

150

Stirring quantity max [L / H2O]

100

Motor principle

Brushless DC motor

Torque max. at stirring shaft [N-cm] 2)

170(I) / 34(II)

Stirring element fastening

Keyless chuck, easy to install and replace the shaft.

Chuck range diameter [mm]

0.5~10

Hollow shaft, inner diameter [mm]

10.2

Fastening on stand

Extension arm

Extension arm diameter [mm]

13

Extension arm length [mm]

124

Housing material

Cast aluminum coating

Interface RS-232/485 and analog connection

Yes

Dimensions of motor (W x H x D)

200 x 95 x 230

Weight

4.5

Power supply

100~240VAC,50/60Hz



1) Two grades of stirring speed are for this series. The low-speed has more torque, and is suitable for chemical reaction system. And the high-speed is suitable for sample pretreatment. According to the set speed, it can be switched automatically between them.
2) The two speed ranges correspond to different maximum torque.
