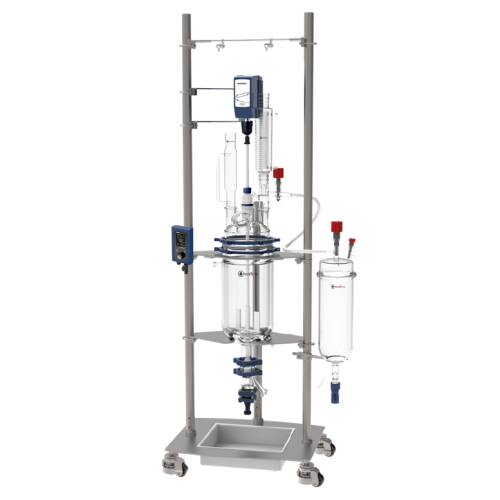

20L Process reactor (cylindrical jacketed) Model: WRS-1503-02 Wiggens Germany

EZChem pilot plant reactor are complete with support stand, overhead stirrer and glassware, available with the optional multi-channel regulating valve and distillation unit. The unique design of the smart supporting structure and clamping system allows for quick and easy installation/removal of glassware.

1. Select the base system dependent on desired working volume.
2. Select the motor that best suits your application.
3. Select the components and accessories which best fit your application. 20L complete standard pilot reactor

20L complete standard pilot reactor

Part number	Description	Description
WRS-1503-021	20L Process System	Complete with reaction system, Stand, High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-021M	20L Process System	Complete with reaction system, Stand, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-022	20L Process System with distillation unit	Complete with reaction system, Stand, 5L Distillation unit, High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-022M	20L Process System with distillation unit	Complete with reaction system, Stand, 5L Distillation unit, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF

Specifications

Reaction volume	20L
Flange of vessel	DN300
Bore diameter of bottom valve	0-25mm
Reactor lid	DN300, 1×45/40(CN), 4×45/40(SN), 2×29/32(SN), 1×DN100(SN-45° )
Total openings on the lid	8
Material of reaction vessel and lid	High quality borosilicate glass
Temperature range	-60~200℃
Vessel pressure	Atmospheric pressure and vacuum
Jacket pressure	up to 0.5bar
Material of wet part	Borosilicate glass / PTFE / PFA
Inlet and outlet of jacket	DN25
Stirring speed	Available at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your Wiggens
Diameter/length of stirring Rod	Ø16mm / 1000mm
Blade diameter	Anchor style stir paddle
Length of condenser	300mm
Volume of collection flask	5L
Volume of liquid funnel	1L
Temperature sensor	Ø6mm×600mm
Stand Dimensions ( W x D x H)	Approx.  800x 660x 2380mm
