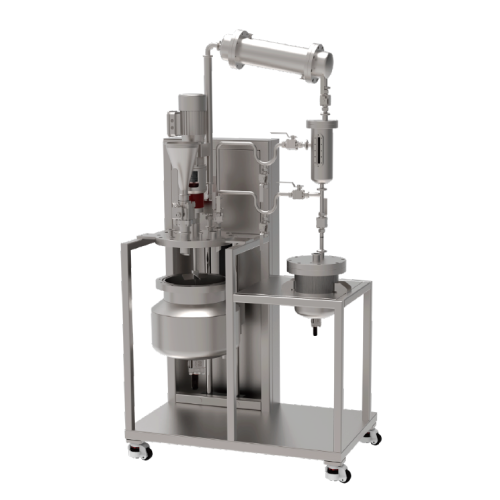

The Atmospheric pressure and negative pressure reactor Max.pressure: -1~5barModel: VR-10L Wiggens Germany

The VR-reactors enable experiments with 5L to 200L and negative pressure. In comparison to the other series of reactors, no loss of flexibility or safety has to be made. Easy handling and highest safety and maximal flexibility and individuality

VR-5L to VR-200L reactors with a bottom drain valve have three different configurations:
● Basic configration for M1
● Basic configuration with distillation unit for M2
● Basic configuration with short-path distillation unit for M3

In total, VR-5L to VR-200L have eight ports, The ports can be used according to customer needs.

Features
● 5L~200L / -1~5 bar / 200℃
● With or without jacket, with bottom outlet
● Quick closure chain design
● O-seal ring made of Viton, Other materials are optional
● Heating by electrical or thermostated mantle
● Stirring by overhead stirrer

Technical specification

	VR-10L
General information
Material	Stainless Steel 316L
Max. temperature	200℃
Max. pressure	-1~5bar
Reactor vessel
Volume (approx.)	15.1 L
Inner diameter	Ø 254 mm
Inner height	360 mm
Thickness	8 mm
Bottom drain valve	With
Configration
Standard configuration	Basic configuration for M1, basic configuration with distillation unit for M2 Basic configuration with short-path distillation unit for M3
Port (total)	8
Type of connection	8 mm tube connection
Heating systems (optional)
Electrical (Heating jacket)	Yes
Via fluid (Double jacket)	Yes
Stirring (Magnetic drive)
RV-GL	Yes
RV-400	Yes
