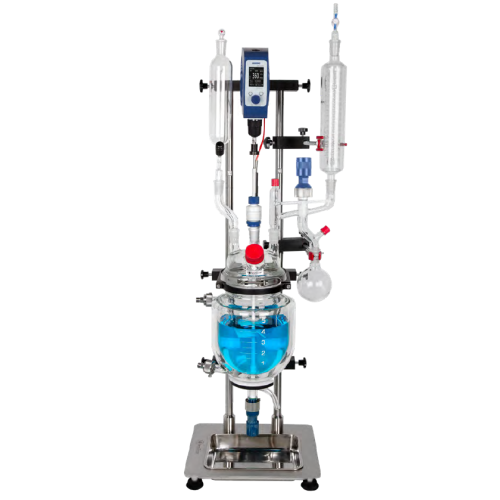

The Bench top reactor all-in-one jacketed 5000ml  Model: WRS-1501-06 Wiggens Germany

NEW Bench top Reactor are complete with support stand, overhead stirrer and glassware, available with the optional multi-channel regulating valve. The unique design of the Bench top Reactor support stand and clamping system allows for quick and easy installation/removal of glassware and fits into most fume hood.

5000ml complete bench top Reactor

Part number	Description
WRS-1501-061	Complete with Glassware & Stand, and Digital Overhead Stirrer WOHS-15 Pro
WRS-1501-062	Complete with Glassware, Stand, and High Torque Overhead Stirrer WOHS-400 Pro
WRS-1501-061M	Complete with Glassware & Stand, Multi-channel regulating valve and Digital Overhead Stirrer WOHS-15 Pro
WRS-1501-062M	Complete with Glassware, Stand, Multi-channel regulating valve and High Torque Overhead Stirrer WOHS-400 Pro

Specifications

Max. reaction volume recommendation	5000mL
Flange	DN150
Bore diameter of bottom valve	0-10mm
Reactor lid	CN:24/40, SN:24/40(3), 45° -GL45
Material of reaction vessel and lid	High quality borosilicate glass
Temperature range	-60~200℃
Vessel pressure	suitable for atmospheric and vacuum reaction
Jacket pressure	up to 0.5bar
Material of wet part	Borosilicate glass / PTFE / PFA
Inlet and outlet of jacket	DN15
Stirring speed	Available at 500 RPM for long-term operation, 800 RPM for short-term operation If high-speed mixing applications are required, please consult your Wiggens
Diameter/length of stirring Rod	Ø10mm / 650mm
Blade diameter	Low position: 140mm(Anchor Style Stir Paddle) High position: 70mm(4 blade angled type stir paddle)
Length of condenser	300mm
Volume of collection flask	2000mL
Volume of liquid funnel	1000mL
Distance between discharge port and spill tray	150mm
Weight	37kg
Stand Dimensions ( W x D x H)	Approx.  550x 440x1300mm
