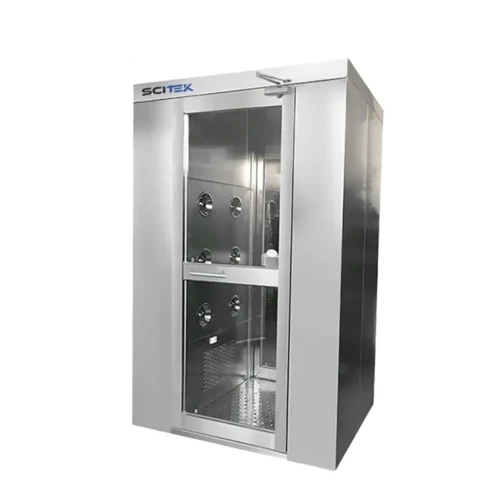

Air Shower 25m/s Model: AS-1P1C, 1P2C, AS-2P2C Scitek Global

Product Description

Air shower is a a necessary purification equipment, installed between clean room and non-clean room. When people need to enter the clean area, it is necessary to pass through the air shower, and the clean air blown out can remove the dust carried by people, effectively preventing or reducing the entry of dust sources into the clean area. The front and back doors of the air shower are electric interlocked, which can effectively prevent unpurified air from entering the clean area.



Air Shower Specifications:

Model	AS-1P1C	AS-1P2C	AS-2P2C
External Size (WxDxH)(mm)	1300x1000x2050	1500x1000x2050	1500x2000x2050
Shower Area Size (WxDxH)(mm)	800x900x1930	800x900x1930	800x1900x1930
HEPA Filter	99.995% efficiency at 0.3μm
Spraying Wind Speed	25m/s
Air Shower Time	0~99s (adjustable)
Sound Emission	<70db
No.of SS Nozzles	6	12	24
Fluorescent Lamp	12Wx1	12Wx1	12Wx2
Consumption	550W	1100W	2200W
Cabinet Material (Optional)	Full cold-rolled steel with powder coating. Internal stainless steel,external with cold-rolled steel. Full Stainless Steel.
Door Material (Optional)	Cold-rolled steel with powder coating. Stainless Steel.
Chassis	Stainless Steel
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Net Weight (kg)	150	200	500
Gross Weight (kg)	300	400	700
Shipping Size (WxDxH)(mm)	1400x1200x2200	1600x1200x2200	1600x2200x2200



Air Shower Features:

1.      Automatic control, double door with electronic interlock, Automatic induction blowing, Double door lock when blowing.

2.      Three materials can be choosed: Fully cold-rolled steel with powder coating, Fully stainless steel, Internal stainless steel, external with cold-rolled steel..

3.      Thickened 304 stainless steel base plate, 304 stainless steel nozzle

4.      LED display，easy to operate。

5.      Display panel operation includes: Manual blowing; Emergency button; Lighting control; Shower time setting: 0~99s adjustable.
