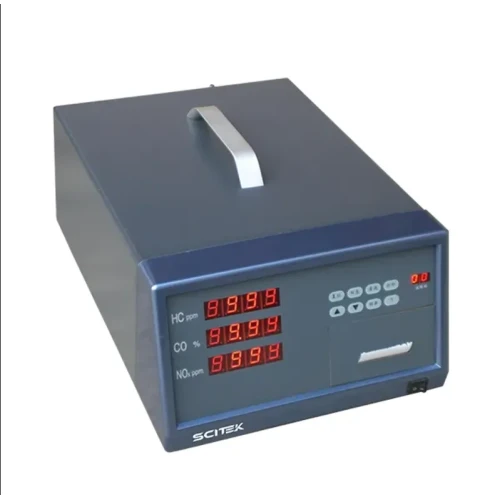

Automobile Exhaust Analyzer 0~10000×10-6(ppm) AEA-301 Scitek Global
Product Description
Automobile Exhaust Analyzer Specifications:
|
Model
|
AEA-301
|
|
Measuring Range
|
HC: 0~10000×10-6 (ppm)vol
|
|
CO: 0~10×10-2 (%)vol
|
|
NOx: 0~4000×10-6 (ppm)vol
|
|
Indicating Error
|
HC ± 12×10-6 (ppm)vol (absolute error) or ±5%
(relative error)
|
|
CO ± 0.06×10-2(%)vol (absolute error) or ±5%
(relative error)
|
|
NOx ± 25×10-6 (ppm)vol (absolute error) or ±4%
(relative error)
|
|
Stability
|
moment drift ≤±3%; Repeatability ≤±2%
|
|
Resolution
|
HC:1×10-6 (ppm)vol
|
|
CO: 0.01×10-2 (%)vol
|
|
NOx: 1×10-6 (ppm)vol
|
|
Response Time
|
95% response is not more than 10 seconds
|
|
Preheating Time
|
8min (preheating 3min emergency detection)
|
|
Output Mode
|
Digital direct reading, gases can be attached printer name,
the maximum concentration, average value, minimum value, test time, date. Can
interface with computer networking
|
|
And-use Temperature
|
-5~50°C, Relative humidity: ≤90%
|
|
Power
|
AC100~240V, 50/60Hz or DC12V( Add power inverter)
|
|
Power Consumption
|
40VA
|
|
Size (WxDxH)(mm)
|
420×310×170
|
|
Shipping Size (WxDxH)(mm)
|
620×435×295
|
|
N.W. / G.W. (kg)
|
9/12
|
Automobile Exhaust Analyzer Feature:
1.
Used to measure vehicle emissions of HC, CO, NOx gas
concentration, using advanced foreign technology, import the key components
assembled.
2.
With a high-brightness digital display, automatic zero, linear
automatic data processing, auto-alarm when the gas line blocking, fault
diagnosis where the unit automatically and print testing date, time functions.
3.
With built-in printer (or the analog output interface or or
Bluetooth / RS232), can be freely idling and dual idling measure, with easy
operation, accurate measurement data, work stable and reliable characteristics.
