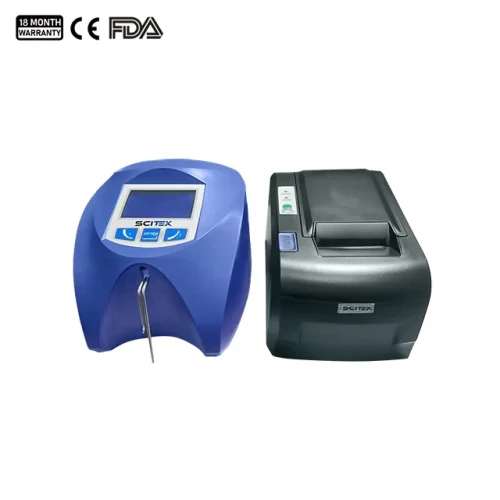

Milk Analyzer 1~40℃ MA-1034 Scitek Global
The milk analyzer
is used in dairy laboratories to analyze the composition and quality of milk to
make quick analyses of milk on fat (FAT), non-fat solids (SNF), proteins,
lactose and water content percentages, temperature (°C), freezing point, salts,
total solids and density.
Laboratory Milk Analyzer Specifications:
|
Model
|
MA-1034
|
|
Display
|
LCD display (4 lines*16 characters)
|
|
Testing Time
|
60-90 seconds
|
|
Environmental Conditions
|
Ambient Air Temperature
|
- 10°C -40°C
|
|
Milk Temperature
|
- 1°C - 40°C
|
|
Relative Humidity
|
- 30% - 80%
|
|
Interface
|
RS232
|
|
Printer
|
Standard
|
|
Power Supply
|
100~240V, 50/60Hz
|
|
DC Power Supply
|
12V to 14.2V
|
|
Power
|
36W
|
|
Size(W×D×H)(mm)
|
Milk Analyzer: 150×170×170
Printer: 150×200×120
|
|
Shipping Size(W×D×H)(mm)
|
320×320×400(includes printer)
|
|
N.W./G.W. (kg)
|
2/3.5 (Includes printer)
|
Parameters of Analysis:
|
Parameters
|
Measuring range
|
Accuracy
|
|
Fat
|
0.01–25%
|
±0.1%
|
|
Solids-non-fat (SNF)
|
3%–15%
|
±0.15%
|
|
Density
|
1015–1160 kg/m3
|
±0.3kg/m3
|
|
Protein
|
2%–7%
|
±0.15%
|
|
Lactose
|
0.01%–6%
|
±0.2%
|
|
Added Water
|
0%–70%
|
±3
|
|
Milk Sample Temperature
|
1°C–40 °C
|
±1%
|
|
Freezing Point
|
-0.4°C–0.7°C
|
±0.001%
|
|
Solids
|
0.4%–1.5%
|
±0.05%
|
Laboratory Milk Analyzer Features:
1. Large LCD display
screen.
2. Testing time: 60-90
seconds.
3. Reserve wearable
silicone tube
4. Also test milk,
ewe's milk, UHT milk
5. Convenience to
carry out, and could be use with auto battery
6. Simple operation
for maintenance, calibration and installation
7. Very small quantity
of milk sample is required
8. Low consumption
9. No use of hazardous
chemicals
10. Measuring accuracy
adjustment can be done by the user RS 232 Interface
11. Standard with
printer
