Product Description

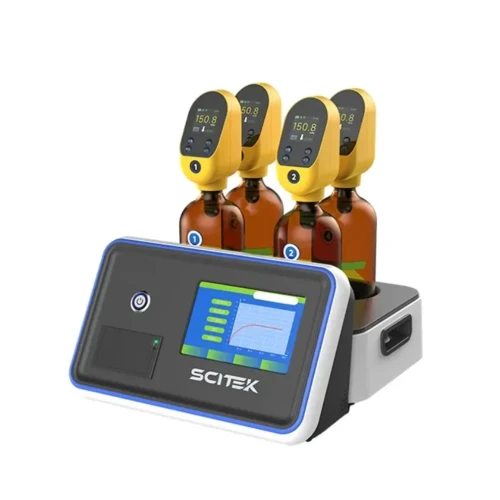

This BOD intelligent tester uses mercury free differential pressure method to measure BOD value in water, and adopts imported sensors to ensure reliable data. The whole machine mold adopts integrated design, with clear functional hierarchy and stylish appearance. It is widely used in the detection of industrial wastewater, domestic wastewater, environmental engineering, university research, agricultural projects, etc.

Working principle

This product simulates the natural biodegradation process, where the oxygen in the air above the test bottle continuously supplements the dissolved oxygen consumed in the water. The CO2 generated during the organic matter degradation process is absorbed by potassium hydroxide in the sealed lid. The sensor monitors the changes in oxygen pressure in the bottle in real time, establishes a correlation between biochemical oxygen demand (BOD) and gas pressure, accurately measures BOD, and displays the results in real time.

BOD₅ Intelligent Tester Specifications:

BOD₅ Intelligent Tester Features:

1.      Adopting a 5-inch main touch screen and a 1.5-inch full-color secondary screen. Multi screen linkage, supporting automatic screen shutdown and one click wake-up function;

2.      Mercury free pressure difference method, safe and reliable experimental process, high accuracy of measurement results

3.      Each culture bottle operates independently, displays results independently, and is equipped with a large capacity lithium battery that can be charged independently or simultaneously

4.      Measurement results do not require conversion, display BOD concentration directly, and automatically print detection results

5.      Wide range, built-in 10 segmented ranges, users can freely choose according to their need

6.      Reserve custom parameters that can be calibrated according to requirements

7.      Automatically generate color data maps, making the detection process more intuitive and clear

8.      Automatically record measurement data for real-time viewing of current and historical data

9.      Wireless data aggregation, allowing for viewing of historical data and real-time graphs through the large screen

10.  Adopting an intelligent control system to continuously collect, analyze, and automatically record data, the cultivation process does not require dedicated personnel to be on duty and is automatically completed throughout the entire process

11.  The measurement cycle and delay time can be adjusted, and users can make adjustments according to their actual situation

12.  Wireless transmission of measurement data, product supports remote upgrade service (optional)
