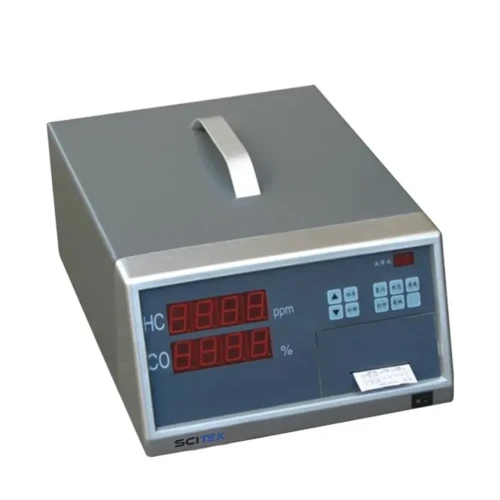

Automobile Exhaust Analyzer 0~10000×10-6(ppm) AEA-201 Scitek Global
Product Description
Automobile Exhaust Analyzer Specifications:
|
Model
|
AEA-201
|
|
Measuring Range
|
HC: 0~10000×10-6 (ppm)vol
|
|
CO: 0~10×10-2 (%)vol
|
|
Indicating Error
|
HC±12×10-6 (ppm)vol (absolute error) or ±5%
(relative error)
|
|
CO±0.06×10-2 (%)vol (absolute error) or ±5%
(relative error)
|
|
Stability
|
moment drift ≤ ±3% Repeatability ≤ ±2%
|
|
Resolution
|
HC:1×10-6(ppm)vol
|
|
CO: 0.01×10-2(%)vol
|
|
Response Time
|
95% response is not more than 10 seconds
|
|
Preheating Time
|
8min (preheating 3min emergency detection)
|
|
Output Mode
|
Digital direct reading, gases can be attached printer name,
the maximum concentration, average value, minimum value, test time, date. Can
interface with computer networking
|
|
And-use Temperature
|
-5~50°C, Relative humidity: ≤90%
|
|
Power
|
AC100~240V 50/60Hz or DC12V (Add power inverter)
|
|
Power Consumption
|
40VA
|
|
Size (WxDxH)(mm)
|
420×310×170
|
|
Shipping Size (WxDxH)(mm)
|
620×435×295
|
|
N.W. / G.W. (kg)
|
9/12
|
Automobile Exhaust Analyzer Feature:
1. Used to measure
vehicle emissions of HC and CO gas concentrations, using advanced foreign
technology, import the key components assembled.
2. With a high-brightness
digital display, automatic zero, linear automatic data processing, auto-alarm
when the gas line blocking, fault diagnosis where the unit automatically and
print testing date, time functions.
3. With built-in
printer (or the analog output interface or or Bluetooth/ RS232), can be freely
idling and dual idling measure, with easy operation, accurate measurement data,
work stable and reliable characteristics.
What does the auto exhaust analyzer do?
An auto exhaust
analyzer measures the concentration of gases emitted from a vehicle's exhaust.
It typically detects:
Carbon monoxide
(CO)
Carbon dioxide (CO₂)
Hydrocarbons (HC)
Oxygen (O₂)
Nitric
oxide/nitrogen oxides (NO/NOx)
