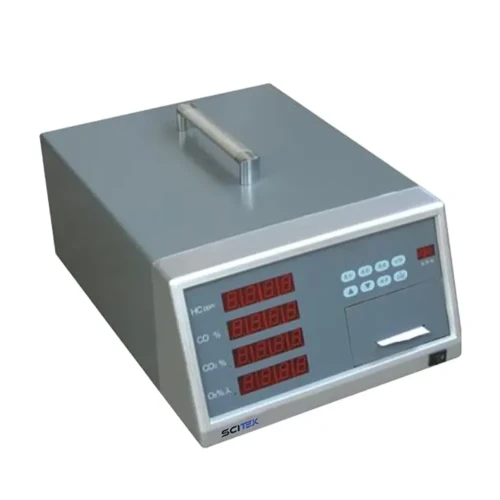

Automobile Exhaust Analyzer 0~10000×10-6(ppm) AEA-401 Scitek Global
Product Description
Automobile Exhaust Analyzer Specifications:
|
Model
|
AEA-401
|
|
Measuring Range
|
HC: 0~10000×10-6(ppm)vol, CO: 0~10×10-2(%)vol
)
|
|
CO2: 0~20×10-2(%)vol; O2:
0~25×10-2(%)vol
|
|
Lambda: 0.50~3.00; COcor:0~10×10-2(%)vol
|
|
Indicating error
|
HC±12×10-6 (ppm)vol (absolute error) or ±5%
(relative error)
|
|
CO±0.06×10-2 (%)vol (absolute error) or ±5%
(relative error)
|
|
CO2±0.5×10-2(%)vol (absolute error) or
±5% (relative error)
|
|
O2±0.1×10-2(%)vol (absolute error) or
±5% (relative error)
|
|
Stability
|
Moment drift≤±3% Repeatability ≤±2%
|
|
Resolution
|
HC:1×10-6(ppm)vol, CO: 0.01×10-2(%)vol
|
|
CO2: 0.1×10-2(%)vol, O2:
0.01×10-2(%)vol, Lambda: 0.01
|
|
Response Time
|
95% response is not more than 10 seconds
|
|
Preheating Time
|
8min (preheating 3min emergency detection)
|
|
Output Mode
|
Digital direct reading, gases can be attached printer name,
the maximum concentration, average value, minimum value, test time, date. Can
interface with computer networking
|
|
And-use Temperature
|
-5~50°C, Relative humidity: ≤90%
|
|
Power
|
AC100~240V 50/60Hz or DC12V( Add power inverter)
|
|
Power Consumption
|
40VA
|
|
Size (WxDxH)(mm)
|
420×310×170
|
|
Shipping Size (WxDxH)(mm)
|
620×435×295
|
|
N.W. / G.W. (kg)
|
9/12
|
Automobile Exhaust Analyzer Feature:
1.
Automobile exhaust analyzer is used to measure the concentration
of HC, CO, CO2, O2 in the exhaust gas of automobile. It
can automatically calculate and display the air-fuel ratio λ.
2.
It can comprehensively detect the combustion performance and
emission pollution of engine.
3.
Using foreign advanced technology, Germany imported movement.
4.
It has high brightness digital display, automatic zero
calibration, automatic data linearization processing, automatic alarm in case
of gas path blockage, and automatic diagnosis unit in case of fault.
5.
The automobile exhaust analyzer is applicable to the detection
of engine exhaust components using gasoline, LPG, CNG, alcohol and diesel as
fuel.
6.
It is equipped with built-in printer (or Bluetooth/ RS232 ) to
meet the new national standard gb18285-2018 and American bar-97 standard
Accurate, in line with iso3930 or oimlr99 class I accuracy, it can carry out
free idle, double idle measurement and multi working condition measurement,
with the characteristics of convenient operation, accurate measurement data,
stable and reliable operation.
