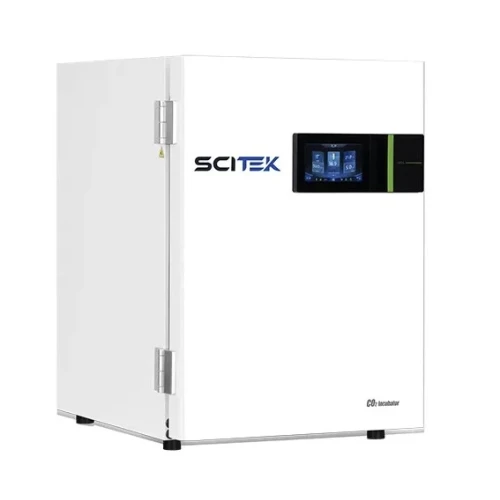

CO2 Incubator 170L Scitek Global

• Specially designed airflow patterns provide superior uniformity and resilience in the distribution of key environmental conditions (temperature, gas exchange and humidity).

• Advanced PID algorithms in conjunction with multiple PT100 sensors and advanced condensate control technology enable precise temperature control within the chamber, significantly boosting experimental reproducibility and reducing condensate.




  Specification

  Model		ICB-170
  Temperature	Type	Direct Heat & Air Jacketed
  	Range	RT+3–55 °C
  	Uniformity	≤±0.3 °C
  	Accuracy	<±0.1 °C
  	Recovery	≤10 mins
  	Ambient	18–34 °C
  CO2	Controller	PID microcomputer
  	Range	0–20%
  	Accuracy	±0.1%
  	Sensor	IR
  	Recovery	≤5 mins
  	Sterilization	180°C dry heat
  Humidity	Mode	Integrated pan
  	rH%	91% @ low rH mode, 94% @ High rH mode
  	Recovery	15 mins
  O2 (Optional Tri-gas Type)	Controller	PID microcomputer
  	Range	1–20.7%
  	Accuracy	±1%
  	Sensor	Zirconia
  	Accuracy	O2% @ 1.0%: 24mins; O2% @ 5.0%: 10mins
  Alarm and Reminder	Alarms	Ambient temp., RH%, CO2%, Water level, O2% (optional)
  	Reminder	shortage of gas
  Cleanliness	Sterilization	180 °C dryheat
  		0.2um filter
  Specification	Capacity	170 L
  	Internal Construction	Polished 304 stainless steel
  	Shelf Qty (Standard)	3
  	Max Shelf Qty	Up to 7 optional
  	Shelf Size (W×D)(mm)	450×485 (Big); 450×440 (small)
  	Max Loading of Each Shelf	12 kg
  	Power Supply	AC 220 V, 50/60 Hz
  	Max. Power	1000 W
  	Stable Power	42 W
  	Internal Size (W×D×H)	490×560×621 mm
  	External Size (W×D×H)	670×825×920 mm
  	Shipping Size (W×D×H)	740×1140×1095 mm
  	N.W./G.W.	94/116 kg
  	Optional	HEPA filter
