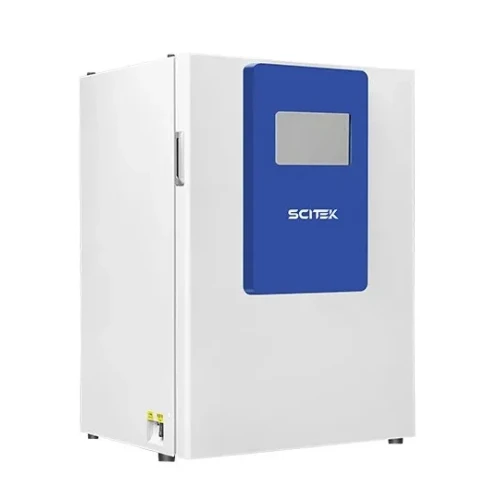

CO2 Incubator AH Series Scitek Global
The CO2 incubator has been
specifically designed to provide performance reliability, ease of operation and
to meet a range of incubation needs from basic research to demanding cutting
edge applications.
Features
1. Precise
temperature control--Six-sided heating.
2. High-precision
infrared (IR) CO2 sensor.
3. Fast
recovery of environment in the incubator.
4. 7-inch
smart touch screen--real-time monitoring, alarm prompt.
5. 180℃ dry heat sterilization.
6. In-situ
sterilized HEPA filter--The cleanliness level of the culture room reaches Class
A (Class 100 cleanliness) within 5 minutes after closing the door (except for
ICB-C60AH).
7. Antimicrobial
powder coating, one-piece inner tank, rounded corner design, no frame, no slide
rails, no screws inside, easy to clean.
Specification
| Model | ICB-C60AH | ICB-C190AH | ICB-C270AH |
|---|
| Capacity(L) | 55 | 185 | 260 |
| Internal Size (W×D×H)(mm) | 310×380×470 | 500×570×650 | 555×570×832 |
| External Size (W×D×H)(mm) | 530×635×690 | 715×820×870 | 775×820×1055 |
| Heating mode | Six-sided heating |
| Temperature control range | RT+3~60℃ |
| Temperature uniformity | ±0.25℃ |
| Temperature fluctuation | ±0.05℃ |
| Temperature accuracy | ±0.1℃ |
| Temperature recovery (after opening door for 30s) | ≤ 3 min | ≤ 3 min | ≤4 min |
| Ambient temperature range | 18~34℃ |
| CO2 sensor | Infrared (IR) sensor |
| CO2 concentration control range | 0~20% |
| CO2 control accuracy | ±0.1% |
| CO2 concentration recovery (after opening door for 30s) | ≤3 min | ≤3 min | ≤4 min |
| CO2 inlet pressure | 0.8~1.2bar |
| Humidification mode | Natural evaporation |
| Relative humidity range | ≥90%RH |
| Sterilization mode | 180℃ Dry heat | 180℃ Dry heat | 180℃ Dry heat |
| Sterilization duration | < 10 hours |
| Air intake filter | ≤0.2μm |
| Display | 7-inch LCD touch screen |
| Door opening method | Left and right interchange |
| Material | Internal | 304 mirror stainless steel |
| External | Antimicrobial powder coating |
| Test hole | Φ32mm |
| Shelves | 2 pcs | 3 pcs | 3 pcs |
| Shelf size (mm) | 305×270 | 496×440 | 550×460 |
| Shelf load (kg) | 15 |
| Power supply | 115/220V, 50/60Hz |
| Electricity Consumption (W) | 600 | 1300 | 1600 |
| Shipping Size (W×D×H)(mm) | 580x690x860 | 770x870x1040 | 835x865x1222 |
| N.W./G.W. (kg) | 60/70 | 85/105 | 110/120 |
| Data output interface | USB, RS485 |
| Over-temperature protection | Available |
| Alarm | High and low temperature alarm, gas concentration alarm, door opening alarm, fault alarm, etc. |
| IOT monitoring | Available |
