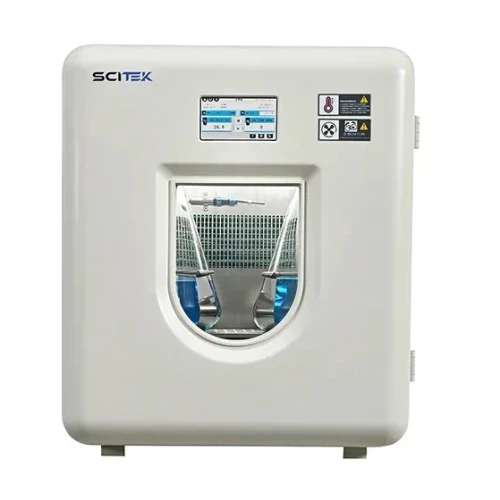

Stackable CO2 Constant Temperature Shaking Incubator Scitek Global

• Suitable for in vitro culture of cells and tissues, including mammalian cells, hybridoma cells, insect cells and plant cells; mild and stable oscillation conditions required for cell culture；molecular biology, such as protein expression.

  Constant Temperature CO2 Shaking Incubator Feature:

  1. Stainless steel cavity

  2. Precise control and monitoring

  3. Pull-down door (ICB-210SCT and ICB-285SCT); Front door design (ICB-170SCT)

  4. Double-layer glass door

  5. Lighting/ultraviolet lamp

  6. Cleaning of volumetric flask after rupture

  7. Advanced refrigeration technologies

  8. Intuitive operation and touch panel

  9. Noise-less operation

  10. Excellent control effect

  11. Safe and stable operation

  12. Multiple safety protection (Protection of personnel, protection of samples and protection of testing equipment)

  Specification

  Model		ICB-170SCT	ICB-210SCT	ICB-285SCT
  Temperature Control	Temperature Range	4–60 °C (Ambient temperature -18°C, minimum 4 °C)
  	Temperature Uniformity	±0.5 °C (At 37 °C)
  	Temperature Accuracy	±0.1 ℃
  	Temperature Recovery Time	≤±10 min
  	Ambient Temperature Range	5–35 ℃
  	Humidification Mode	Ambient to 95% RH
  CO2 Concentration Control	CO2 Control Scope	0-20%
  	CO2 Control Accuracy	0.1%
  	CO2 Stability	±0.1%
  	CO2 Accuracy	±0.3%
  	CO2 Sensor	Imported infrared ray (IR) sensor
  	Sterilization Mode	Ultraviolet sterilization
  	Concentration Recovery Time	≤5mins, door opened for 30s
  Speed Control	Rotation Frequency	0~300 rpm
  	Rotation Accuracy	±1 rpm
  	Vibration Range	25 mm (50 mm, optional)
  Technical Specification	Volume (L)	170	208	282
  	Rocker Size(mm)	480×440	780×500	920×540
  	Maximum Capacity	250 mL×20; 500 mL×16; 1000 mL×9; 2000 mL×5; 5000 mL×4; a static culture shelf	250 mL×40; 500 mL×28; 1000m mL×15; 2000 mL×12;	250 mL×60; 500 mL×40; 1000 mL×24; 2000 mL×15; 5000 mL×7;
  	Number of Rockers	1PC	1PC	1PC
  	Heating Power (W)	800	1000	1300
  	Refrigeration Power (W)	150	195	195
  	Motor Power (W)	250	250	250
  	Light (W)	8	8	8
  	UV Lamp (W)	8	8	8
  	Power Supply	220/110 V, 50/60 Hz
  	Maximum Stacking	2 sets	3 sets	3 sets
  	Internal Size (W×D×H)(mm)	580×520×565	850×570×430	1030×595×460
  	External Size (W×D×H)(mm)	715×900×810	1200×797×640	1410×830×660
  	Shipping Size (W×D×H)(mm)	800×1070×1100	1330×1000×930	1550×1020×950
  	N.W./G.W. (kg)	235/300	329/393	431/520
  Technical Feature	Display Mode	7-inch true color touch screen (switchable in Chinese and English)
  	Control Mode	P.I.D microcomputer environment scanning microprocessor chip control
  	Cyclic Mode	Forced circulation convection type
  	Oscillation Mode	Rotating oscillatory type	Rotating/Reciprocating switching oscillatory type
  	Driving Mode	Single-axis balanced drive
  	Rocker	/	Free drawing type
  	Opening Mode	Side door	Bottom two sets: Pull-down Top: Flip-up
  	HEPA Filter	The intake gas is sterilized by a 0.2um online filter
  	Bearing	Imported double-row bearings
  	Compressor	High quality inverter compressor (Energy saving by 30%)
  	Motor	High-quality servo motor
  	Rotating Shaft Material	Quenching and tempering treatment of 45# carbon steel and 220-250HBW
  	Inner Cavity Material	304 high-quality imported fully stainless steel plate
  	Main Material	High-quality and high-strength OT cast iron, channel steel, angle steel and high-quality cold-rolled steel plate
  	Bottle Gripping Plate Material	High-quality alloy aluminum, oxidation surface treatment
  	Bottle Gripping Material	Adopt stainless steel mirror material, with an elasticity of 360 degrees and a hardness of 420 degrees, not prone to deformation.
  Optional Accessory	Support Bracket (mm)	620×800×350	1070×720×350	1280×720×350
  	Light Culture	Simulated day and night lighting environment
  	Print Function	Embedded built-in micro printer
  	Interface	USB data storage and export
