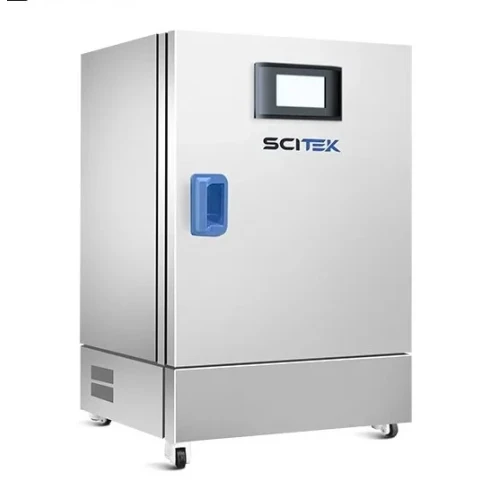

Constant Temperature Incubator N/F Series Scitek Global
Features
1.
Programmable P.I.D temperature
controller. 4.3" color touch LCD screen, standard USB data port, easy to
record and store experimental data.
2.
With scheduled start function,
parameter memory function, safety monitoring function, ambient temperature
detection function, etc.
3.
If the temperature inside the
incubator is abnormal, it will automatically cut off the power and sound an
alarm. Equipped with an external independent temperature protector.
4.
Opening the glass inner door will
automatically cut off the power supply of the heater and the inner circulation
fan (HDPF-T type) to avoid unnecessary energy consumption.
5.
SUS304 stainless steel shell and
chamber. The shelf height is adjustable, and the four corners are semicircular,
which is easy to clean.
6.
Automatic door control system: reduce
gas exchange and cross contamination between internal and external
environments, protect samples and users.
7.
Optional ultraviolet sterilization
lamp to directly sterilize the inside of the incubator.
Specification
| Model | ICB-50N | ICB-110N | ICB-160N | ICB-50F | ICB-110F | ICB-160F |
|---|
| Capacity(L) | 50 | 105 | 155 | 50 | 105 | 155 |
| Circulation Mode | Natural convection | Forced convection |
| Internal Size(WxDxH)(mm) | 370x350x420 | 486x409x536 | 551x474x601 | 370x350x420 | 486x409x536 | 551x474x601 |
| External Size(WxDxH)(mm) | 520x633x847 | 635x673x962 | 740x742x1027 | 520x633x847 | 635x673x962 | 740x742x1027 |
| Temperature | Range | RT+5~70°C |
| Uniformity | ±0.5°C at 37°C; ±0.9°C at 50°C | ±0.6°C at 37°C; ±1°C at 50°C |
| Fluctuation | ≤±0.3°C |
| Controller | PID Controller; Max. 10 groups × 9 segments program operation |
| Display | 4.3" color touch LCD screen |
| Timer | 0~9999min |
| Material | Internal | SUS304 matte stainless steel |
| External | SUS304 stainless steel |
| Shelves | 2
|
| Exhaust Hole | Standard Φ38mm test hole |
| Power supply | AC 220V, 50Hz |
| Consumption(w) | 200 | 300 | 400 | 200 | 300 | 400 |
| G.W. (kg) | 65 | 86 | 109 | 62 | 87 | 111 |
| Shipping Size(WxDxH)(mm) | 720×620×1010 | 770×730×1110 | 830×830×1190 | 720×620×1010 | 770×730×1110 | 830×830×1160 |
