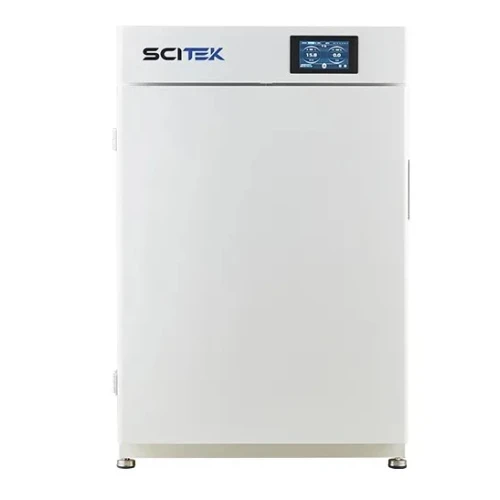

Stackable CO2 Incubator AD Series Scitek Global

CO2 Incubator Feature:

1. 6-sided direct heating chamber

   6-sided heating method, efficient and high-performance heating system makes the temperature distribution of the whole incubator highly uniform；

   Polished stainless steel one-piece inner chamber, rounded corner design, easy to clean;

   Removable trays can be flexibly combined, and independent humidification trays can be taken out or put in as needed;

   The built-in fan in the chamber blows gently to make the air in the chamber evenly distributed and ensure a consistent culture environment;

   Equipped with 304 stainless steel water tray for humidification, which can hold 4L of water.

2. 140°C high temperature sterilization

   140°C high temperature sterilization simplifies the cleaning process;

   Effectively eliminate bacteria, mold, yeast and mycoplasma on the surface of the chamber.

3. ISO 5 level HEPA filtered airflow system

   The built-in HEPA air filtration system in the chamber can continuously filter the air in the entire chamber;Air quality reaches ISO 5 within 5 minutes after closing the door.

4. Infrared (IR) CO2 sensor for precise monitoring

   Infrared (IR) CO2 sensor for stable monitoring when humidity and temperature are less predictable, effectively avoiding measurement deviations caused by frequent door opening and closing;

   Ideal for sensitive applications, or where the incubator needs to be opened frequently;

   Temperature sensor with overheat protection;

5. Active Airflow Technology

   The incubator is equipped with fan-assisted air circulation for fast recovery. The airflow pattern is designed to evenly distribute a few key environmental conditions (temperature, gas exchange and humidity);

   The fan gently blows filtered humidified air to ensure that all cells have the same environmental conditions without excessive water loss.

6. 5-inch LCD touch screen

   Instant display of running curves, historical running curves;

   Located above the door for easy control;

   With audio and visual alarms, on-screen menu prompts;

   The display can view and export historical data.

• Specification

  Model	ICB-C85AD	ICB-C185AD
  Capacity	85L	185
  Display	5 inch LCD touch screen
  Temperature control mode	PID control mode
  Temperature Range	RT+5°C~60°C
  Temperature Resolution	0.1°C
  Temperature Uniformity	±0.3°C at 37°C
  CO2 Measurement Sensor	Infrared (IR) detection
  CO2 Range	0~20%
  CO2 Resolution	0.10%
  CO2 Supply	0.05~0.1MPa is recommended
  Humidity	Ambient humidity~95% at 37°C
  Shelf	3pcs
  Timing Range	0~999.9 hours
  HEPA Filtration	ISO 5 level, 5 minutes
  Sterilization Method	140°C High heat sterilization
  Temperature Recovery	≤10 mins
  	(open door 30sec room temperature 25°C set value 37°C)
  CO2 Concentration Recovery	≤5 mins
  	(open the door 30sec set value 5%)
  Data Storage	250000 pieces of information
  Output Interface	USB interface
  Scalability	Up to 2 units can be stacked
  Working environment temperature	10~30°C
  Power supply	220V/110V, 50/60Hz
  Heating Power	500W	900W
  Chamber Size (W×D×H)(mm)	440×400×500	535×526×675
  External Size (W×D×H)(mm)	560×530×825	660×652×1000
  Shipping Size (W×D×H)(mm)	700×645×940	730×725×1175
  N.W/G.W(kg)	78/98	108/138
