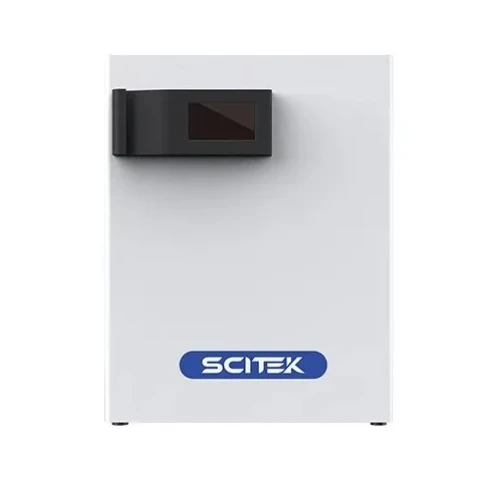

Semiconductor Incubator Scitek Global
Semiconductor low-temperature constant temperature
incubators are widely used in laboratories in fields such as biology,
agriculture, environmental protection, pharmaceutical, drug testing, and
aquaculture. They are ideal temperature control equipment for microbial
culture, breeding experiments, and sample storage under low-temperature
conditions.
Features
1. Semiconductor(Peltier)cooling/heating technology allows for rapid switching.
A single module can replace both discrete heating and cooling systems.
2. No
refrigerant required, no leaks, no pollution. It operates without noise or
vibration, and has a long lifespan.
3. Dual
PT100 temperature sensors, polyurethane foam insulation, and high-precision
temperature control.
4.
7-inch touchscreen, real-time data display, three-level access control,
password protection, double-layer stackable design.
5. An
independent ambient temperature sensor automatically adjusts heating based on
changes in ambient temperature to prevent temperature overshoot within the
chamber.
6. The
cabinet features a glass inner door and internal lighting. The inner liner and
shelves are made of 304 stainless steel for easy cleaning.
7. An
independent temperature limit controller automatically cuts off heating and sounds
an alarm when the temperature exceeds the limit.
8. It
features multiple alarm systems, such as over-temperature alarm, high and low
temperature alarm, door open alarm, sensor error alarm, overheat protection,
and overcurrent protection.
Specification
Model | ICB-200S |
Capacity | 200 L |
Circulation Mode | Variable air speed airflow circulation |
Temperature | Range | 0~70 °C |
Fluctuation | ±0.1 °C |
Control Accuracy | 0.1 °C |
Uniformity | ±0.2 @ 22 °C; ±0.5 @ 37 °C |
Heating Program Setting | 5×100 steps (max. 999 cycles) |
Exhaust Hole | Standard Φ42 mm test hole |
Standard Interface | USB, RS485 |
Shelf | 3 (standard) |
Power Supply | AC 220/110 V, 50/60 Hz |
Consumption | 400 W |
Internal Size (W×D×H) | 500×580×690 mm |
External Size (W×D×H) | 680×835×870 mm |
Shipping Size (W×D×H) | 745×940×1120 mm |
N.W./G.W. | 90/100 kg |
Optional | UV lamps, shelves, stacked components, internal sockets |
