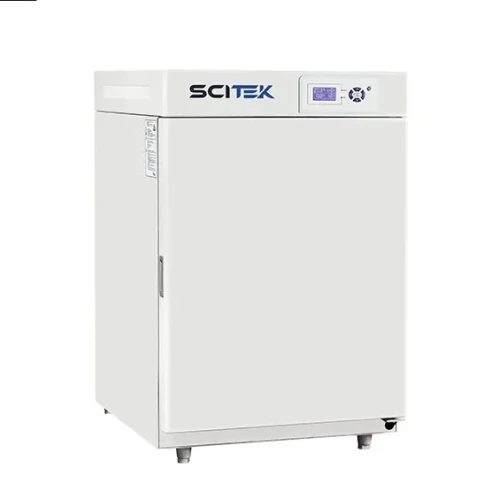

CO2 Incubator CA Series Scitek Global

CO2 Incubator Features:

1. Humanity design, Polished 304 stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.

2. Two-layer stacking available, facilitating the full utilization of laboratory space.

3. Faster CO2 concentration Restoration Speed.

4. Imported infrared sensor can keep CO2 concentration stability and uniformity when door open frequently.

5. Microorganism filter at inlet provides 99.99% filtration of bacteria and dust (Ф<0.3μm) and supplies pure CO2 into the incubator.

6. The speed of the circulating fan can be automatically controlled. When the temperature inside the incubator is at a constant temperature, the speed will decrease and the circulating wind speed will be adjusted to a suitable speed for cell growth, avoiding sample evaporation caused by excessive air volume during the experiment.

7. Door temperature controller prevents dewfall on glass door of incubator effectively.

8. Safety function: Independent audible and visible temperature-limiting alarm system ensures experiments run safely.(Optionals)

9. Alarm function for temperature difference, CO2 over concentration and concentration difference,door open time.

10. UV sterilization system: The ultraviolet sterilization lamp is located at the top and rear of the incubator, which can regularly disinfect the inside of the incubator and effectively kill floating bacteria in the circulating air and humidification tray steam inside the incubator, thereby effectively preventing contamination during cell culture.

• Specification

  Model	ICB-CA50(UV)	ICB-CA80(UV)	ICB-CA150(UV)	ICB-CA190(UV)	ICB-CA240(UV)	ICB-CW30(UV)	ICB-CW80(UV)	ICB-CW150(UV)
  Capacity(L)	50/80		150/190		240	30	80	150
  Internal Size (W×D×H)(mm)	400×350×350	400×450×500	480×530×610	520×530×690	600×630×670	290×290×310	400×400×500	500×500×650
  External Size (W×D×H)(mm)	580×450×540	590×657×870	670×710×950	708×710×1030	788×837×940	440×410×544	550×520×764	650×615×914
  Heating method	Air jacket					Water jacket
  Temperature fluctuation	±0.2℃					±0.1℃
  Temperature control range	RT+5~55℃
  Working environment temperature	+5~30℃
  CO2 control range	0~20%
  CO2 control accuracy	±0.1% (infrared sensor)
  CO2 recovery time	(Recovery to 5% in 30 seconds)≤ 3 minutes
  Temperature recovery	(Return to 37℃ in 30 seconds)≤ 8 minutes
  Relative humidity	Natural evaporation ≥ 90% (no display)
  Disinfection method	UV disinfection
  Power Supply	AC 220/110V, 50/60Hz
  Shelves (standard)	2pcs		3pcs		3pcs	2pcs	2pcs	3pcs
  Input power	450W/500W		750W		950W	250W	680W	950W
  N.W./G.W. (kg)	59/79	64/98	85/126	85/134	95/148	50/65	55/90	68/125
  Shipping Size(WxDxH)(mm)	830×800×980	740×700×1040	830×840×1250	830×840×1250	930×910×1220	560×800×540	700×670×1010	830×780×1070
  Standard	1 pcs CO2 pressure releasing valve
  Optional	Embedded printer; HEPA filter, RS485
