Electrical Aspirator Pump (Vacuum Pump/Pressure Pump) VE-11Wiggens Price in Bangladesh

Electrical Aspirator Pump (Vacuum Pump/Pressure Pump) VE-11Wiggens Germany

0 Customer Review

Availability: Call For Price
Brand: Weggens Germany

Highlights

Max. Flow Rate 36 L/min (18 L/min*2)
36 L/min (18 L/min*2) 9.5L
Motor Power(W) 150 W
Material (Water Tank) Polypropylene
Dimensions Water Tank(WxDxH mm) 298 x 210 x 227
Case(WxDxH mm) 330 x 265 x 390
Absorption nozzle (mm) Ø9.5 x 2
Overflow nozzle (mm) Ø17
Safety Devices Fuse, check valve, overheat protection
Weight (kg) 5.7
Order No. 900701

View More Info

Call For Price

Product Details
Review & Comments

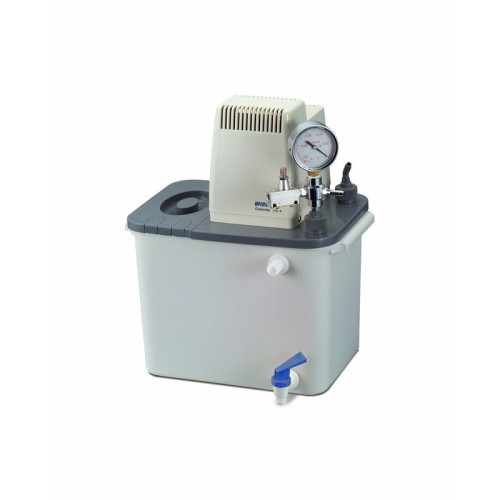

Electrical Aspirator Pump (Vacuum Pump/Pressure Pump) VE-11Wiggens Germany

VE-11 creates a vacuum using an aspirator pump that is dependent on the vapor pressure of water. Ideal for rotary vacuum evaporators, decompressing distillatories, vacuum dryers, and vacuum filtering units.

Features
> Economic use of resources
> High flow rate up to 36 L/min
> Vacuum can be regulated between 20 mmHg and 74 mmHg
> Employs two water flow and gas suction devices, a check valve, and an upstream prevention device
> Housing is made of PP to enhance longevity
> Small amounts of liquid in the machine don’t harm the system. Built-in circulating pump and water tank makes this unit portable and eliminates water waste.
> Circulating pump continuously forces water quietly across a set of aspirators, and therefore clean and efficient.
> Included (2) metal aspirators to create a vacuum with a built-in check valve to prevent backflow of water into the aspirator pump.
> Submerged parts: 304 stainless steel, polypropylene silicone, and nickel-coated brass.
> Tank features a drain port and spigot for easy water changes.
> Unlike other vacuum pumps the VE-11 can suck a little bit of solvent. (water)

Included Accessories
> Tank / Aspirating pump / Tank closure.
> Two aspirators.
> Two ø6mm (0.02˝) silicone rubber tube 20cm (0.7 ft) in length and an additional ø6mm (0.02˝) silicone rubber tube 100cm (3.3 ft)in length

Specifications

Model		VE-11
Max. Flow Rate		36 L/min (18 L/min*2)
36 L/min (18 L/min*2)		9.5L
Motor Power(W)		150 W
Material (Water Tank)		Polypropylene
Dimensions	Water Tank(WxDxH mm)	298 x 210 x 227
	Case(WxDxH mm)	330 x 265 x 390
	Absorption nozzle (mm)	Ø9.5 x 2
	Overflow nozzle (mm)	Ø17
Safety Devices		Fuse, check valve, overheat protection
Weight (kg)		5.7
Order No.		900701

Optional Accessories
> Vacuum gauge / regulator: to monitor and control the vacuum pressure. (between 0.0267~0.0998MPa / 7.9~29.5˝ Hg)
> Cooling coil: to prevent vacuum from decreasing due to temperature increase.

Accessories

Description	Order No.
Vacuum Gauge / Regulator	900701-1
VC-10 Cooling Coil	900701-2
ET-02 Aspirator	900701-3
