Oil-Free Piston Vacuum Pump (Vacuum Pump/Pressure Pump) V430 Wiggens Price in Bangladesh

Oil-Free Piston Vacuum Pump (Vacuum Pump/Pressure Pump) V430 Wiggens Germany

0 Customer Review

Availability: Call For Price
Brand: Weggens Germany

Highlights

Flow rate [m3/h] at atm. pressure 1.68
Flow rate [l/min] at atm. pressure 28
Ultimate vacuum [mbar abs.] 150/5500
Max. Power P [W] 125
Max. current [A] 0.6
Motor speed [rpm] 1450
Hose connections [mm] 9
Noise [dB] 50
Dimensions W x D x H [mm] 247x235x200
Weight [kg] 5.5
Power supply 220V/50Hz

View More Info

Call For Price

Product Details
Review & Comments

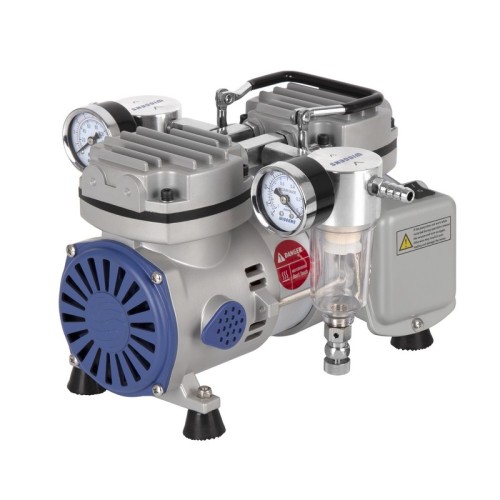

Oil-Free Piston Vacuum Pump (Vacuum Pump/Pressure Pump) V430 Wiggens Germany

Chemvak V series vacuum pump is a piston-powered, oil-free pump. With innovative electronic, mechanical technology and human design concept, compact and light weight, clean and maintenance free, safe and comfortable.

Features

No air pollution, maintenance free
Chemvak V series pumps are driven by piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.

Moisture trap with filter cartridge
Chemvak V series pumps are equipped with filter cartridge in air inlet to filter particle and moisture to prolong the life of pump.

Oil-free
The oil-free piston vacuum pump provides continuous, reliable, high flow vacuum for your container.

Vacuum regulator
Chemvak V series pumps are equipped with vacuum regulator to adjust vacuum.

Thermal protection device
Every motor of Chemvak V series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.

Application

> Biology laboratories
> Food industry
> Microbiological detection
> Vacuum extraction
> Liquid filtration
> Vacuum drying
> Suspended solids measurement

Specifications

Model / Specifications	V430
Order No.	167430
Flow rate [m3/h] at atm. pressure	1.68
Flow rate [l/min] at atm. pressure	28
Ultimate vacuum [mbar abs.]	150/5500
Max. Power P [W]	125
Max. current [A]	0.6
Motor speed [rpm]	1450
Hose connections [mm]	9
Noise [dB]	50
Dimensions W x D x H [mm]	247x235x200
Weight [kg]	5.5
Power supply	220V/50Hz
