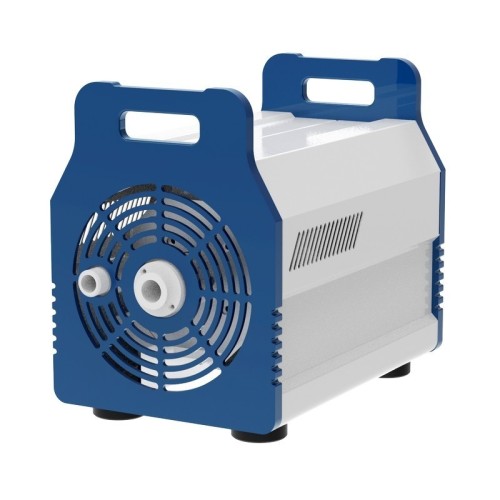

Chemical Resistant Diaphragm Pump (Diaphragm Vacuum Pump) C2000T Wiggens Price in Bangladesh

Chemical Resistant Diaphragm Pump (Diaphragm Vacuum Pump) C2000T Wiggens Germany

0 Customer Review

Availability: Call For Price
Brand: Weggens Germany

Highlights

Flow rate [m3/h] at atm. pressure 10.8
Flow rate [l/min] at atm. pressure 180
Ultimate vacuum [mbar abs.] ＜2
Max. Power P [W] 750
Motor speed [rpm] 1380
Pump head Triple stage
Hose connections of inlet KF25 1)
Hose connections of outlet G1/2 1)
Noise [dB] 60
Dimensions W x D x H [mm] 615×285×386
Weight [kg] 41
Power supply 220~240V/50Hz

View More Info

Call For Price

Product Details
Review & Comments

Chemical Resistant Diaphragm Pump (Diaphragm Vacuum Pump) C2000T Wiggens Germany

C2000 series chemical resistant diaphragm pumps are ideally suited for pumping aggressive gases and vapors in a vacuum range down to 1mbar and pumping speed up to 245L/min.

Features

> All wetted parts are made of chemical resistant materials
> Fast pumping speed
> Low noise
> Overheat protection
> Vacuum can be controlled by manual valve, vacuum controller
> Easy and convenient for maintenance

Specifications

Model / Specifications	C2000T
Order No.	W1032002
Flow rate [m3/h] at atm. pressure	10.8
Flow rate [l/min] at atm. pressure	180
Ultimate vacuum [mbar abs.]	＜2
Max. Power P [W]	750
Motor speed [rpm]	1380
Pump head	Triple stage
Hose connections of inlet	KF25 1)
Hose connections of outlet	G1/2 1)
Noise [dB]	60
Dimensions W x D x H [mm]	615×285×386
Weight [kg]	41
Power supply	220~240V/50Hz
