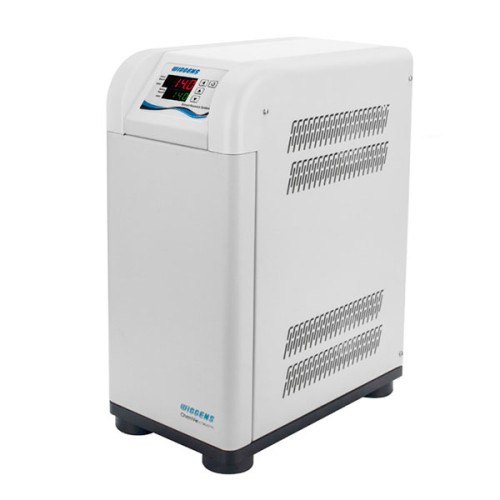

Frequency Conversion Chemical Resistant Vacuum Systems (Diaphragm Vacuum Pump) C900EEF Wiggens Germany

> A new generation of intelligent vacuum technology, modular design, integrated variable frequency pumps and control units, compact design, light weight. It can adjust the speed of the diaphragm pump by frequency conversion motor and controller, controlling the vacuum pressure more accurately.
> PID Self-turing for vacuum cotronl, the controller automatically changes the PID value according to the artificial intelligence logic algorithm, accurately adjusting the motor speed and stabilizing the precise vacuum degree.
> This series of chemical resistant vacuum pumps are suitable for the treatment of corrosive gases in the chemical, pharmaceutical, petrochemical and other industries, such as extraction, vacuum distillation, rotary evaporator, vacuum concentration, centrifugal concentration, solid phase extraction and other uses.
> All parts in contact with gas and condensate are made of high-quality PTFE. The gas chamber and drive chamber are separated and sealed to ensure a long life of the mechanical parts
> Overheat protection, automatic shutdown when the temperature is too high, and automatic start when it goes back to the normal temperature, to ensure the security and stability of the system.

Features

> Vacuum stability, easy to control, high control precision
> Excellent chemical and vapour resistance
> In the high vacuum degree, the performance is still very good.
> Long life, simple and convenient for maintenance.
> Simple and convenient to work in a stable and lasting way
> Small structural size, energy conservation and environmental protection
> High level of protection for motor, suitable for various environments

Application

> Vacuum distillation for large volume
> Large capacity reaction kettle
> Large capacity vacuum filtration
> Vacuum enrichment
> Vacuum drying
> Various applications in the semiconductor industry

Specifications



Model / Specifications	C900EEF
Order No.	169900C
Flow rate [m3/h] at atm. pressure	5.7
Flow rate [l/min] at atm. pressure	95
Ultimate vacuum [mbar abs.]	＜ 30
Vacuum setting range [mbar abs.]	0.1~1000
Max. Power P [W]	400
Motor speed [rpm] @50Hz	0~1380
Motor speed [rpm]@60Hz	0~1680
Pump head	Single stage
Hose connections [mm]	10
Noise [dB]	50
Dimensions W x D x H [mm]	220×400×495
Weight [kg]	21.5
Power supply	200 - 240V, 50/60Hz
