Chemical Resistant Diaphragm Pump (Diaphragm Vacuum Pump) C1200Z Wiggens Price in Bangladesh

Chemical Resistant Diaphragm Pump (Diaphragm Vacuum Pump) C1200Z Wiggens Germany

0 Customer Review

Availability: Call For Price
Brand: Weggens Germany

Highlights

Flow rate [m3/h] at atm. pressure 5.7
Flow rate [l/min] at atm. pressure 95
Ultimate vacuum [mbar abs.] ＜ 8
Max. Power P [W] 370
Max. current [A] 2
Motor speed [rpm] 1380
Pump head Double stage
Hose connections of inlet KF25 1)
Hose connections of outlet G1/2 1)
Noise [dB] 50
Dimensions W x D x H [mm] 440×270×240
Weight [kg] 21.5
Power supply 220~240V/50Hz

View More Info

Call For Price

Product Details
Review & Comments

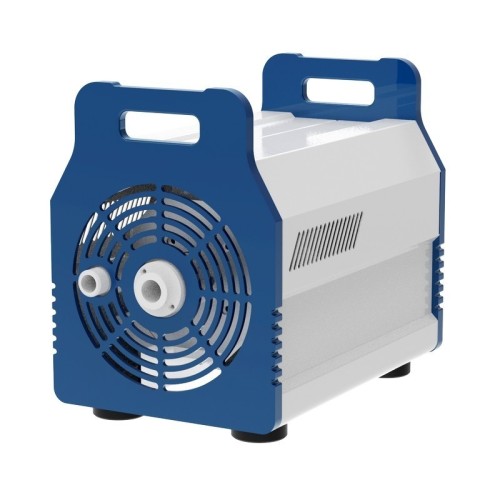

Chemical Resistant Diaphragm Pump (Diaphragm Vacuum Pump) C1200Z Wiggens Germany

C1200 series chemical resistant diaphragm pumps are ideally suited for pumping aggressive gases and vapors in a vacuum range down to 1mbar and pumping speed up to 120L/min.

Features

> All wetted parts are made of chemical resistant materials
> Fast pumping speed
> Low noise
> Overheat protection
> Vacuum can be controlled by manual valve, vacuum controller
> Easy and convenient for maintenance

Specifications

Model / Specifications	C1200Z
Order No.	W1031202
Flow rate [m3/h] at atm. pressure	5.7
Flow rate [l/min] at atm. pressure	95
Ultimate vacuum [mbar abs.]	＜ 8
Max. Power P [W]	370
Max. current [A]	2
Motor speed [rpm]	1380
Pump head	Double stage
Hose connections of inlet	KF25 1)
Hose connections of outlet	G1/2 1)
Noise [dB]	50
Dimensions W x D x H [mm]	440×270×240
Weight [kg]	21.5
Power supply	220~240V/50Hz
