Chemical Resistant Diaphragm Pumps (Vacuum Pump) C920Z Wiggens Price in Bangladesh

Chemical Resistant Diaphragm Pumps (Vacuum Pump) C920Z Wiggens Germany

0 Customer Review

Availability: Call For Price
Brand: Weggens Germany

Highlights

Flow rate [m3/h] at atm. pressure 4.5
Flow rate [l/min] at atm. pressure 75
Ultimate vacuum [mbar abs.] ＜8
Max. Power P [W] 370
Motor speed [rpm] 1425
Pump head Double stage
Hose connections [mm] 10
Noise [dB] 50
Dimensions W x D x H [mm] 440×270×240
Weight [kg] 21.5
Power supply 220V/50Hz

View More Info

Call For Price

Product Details
Review & Comments

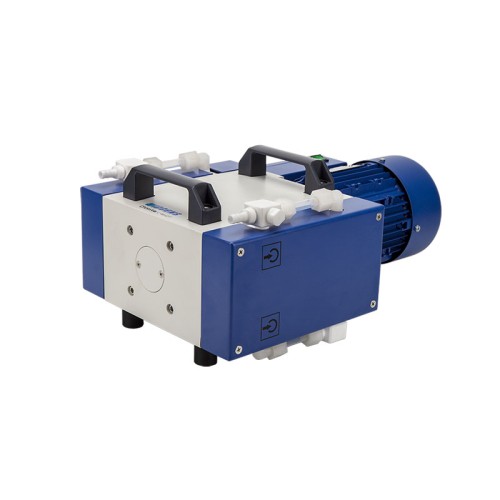

Chemical Resistant Diaphragm Pumps (Vacuum Pump) C920Z Wiggens Germany

C900 series chemical resistant diaphragm pumps are ideally suited for pumping aggressive gases and vapors in a vacuum range down to 1mbar and pumping speed up to 95L/min

Features

> All wetted parts are made of chemical resistant materials
> Fast pumping speed
> Low noise
> Overheat protection
> Vacuum can be controlled by manual valve, vacuum controller
> Easy and convenient for maintenance

Specification

Model / Specifications	C920Z
Order No.	169920
Flow rate [m3/h] at atm. pressure	4.5
Flow rate [l/min] at atm. pressure	75
Ultimate vacuum [mbar abs.]	＜8
Max. Power P [W]	370
Motor speed [rpm]	1425
Pump head	Double stage
Hose connections [mm]	10
Noise [dB]	50
Dimensions W x D x H [mm]	440×270×240
Weight [kg]	21.5
Power supply	220V/50Hz
