Chemical Resistant Diaphragm Pumps (Vacuum Pump) C900EF Wiggens Price in Bangladesh

Chemical Resistant Diaphragm Pumps (Vacuum Pump) C900EF Wiggens Germany

0 Customer Review

Availability: Call For Price
Brand: Weggens Germany

Highlights

Flow rate [m3 /h] at atm. pressure 5.7
Flow rate [L/min] at atm. pressure 95
Ultimate vacuum [mbar abs.] ＜ 30
Max. Power P [W] 370
Motor speed [rpm] 0~1380/0~1680 1)
Pump head Single stage
Hose connections [mm] 10
Noise [dB] 50
Dimensions W x D x H [mm] 440×270×240
Weight [kg] 21.5
Variable frequency vacuum controller Order separately
Power supply 200 - 240V, 50/60Hz

View More Info

Call For Price

Product Details
Review & Comments

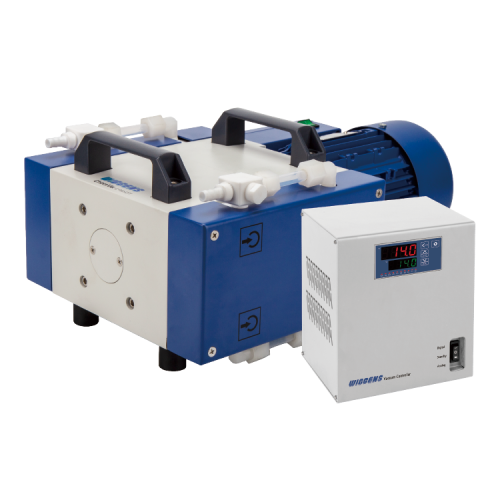

Chemical Resistant Diaphragm Pumps (Vacuum Pump) C900EF Wiggens Germany

Chemical resistant diaphragm pumps are ideally suited for pumping aggressive gases and vapors in a vacuum range down to 1mbar. and pumping speed up to 95L/min
The variable-frequency pump needs to be connected with the variable-frequency controller to control the vacuum by adjusting the speed of the motor, which is especially suitable for the vacuum control of large-capacity system. It not only ensures a faster pumping speed, but also obtains a stable vacuum.

Features

> All wetted parts are made of chemical resistant materials
> Variable frequency motor for fast pumping speed
> Low noise
> Overheat protection
> Vacuum can be controlled by manual valve, vacuum controller or variable frequency controller
> Easy and convenient for maintenance

Specifications

Model / Specifications	C900EF
Order No. (W/O frequency controller)	169900B
Order No. (W/ frequency controller)	169901B
Flow rate [m3 /h] at atm. pressure	5.7
Flow rate [L/min] at atm. pressure	95
Ultimate vacuum [mbar abs.]	＜ 30
Max. Power P [W]	370
Motor speed [rpm]	0~1380/0~1680 1)
Pump head	Single stage
Hose connections [mm]	10
Noise [dB]	50
Dimensions W x D x H [mm]	440×270×240
Weight [kg]	21.5
Variable frequency vacuum controller	Order separately
Power supply	200 - 240V, 50/60Hz
