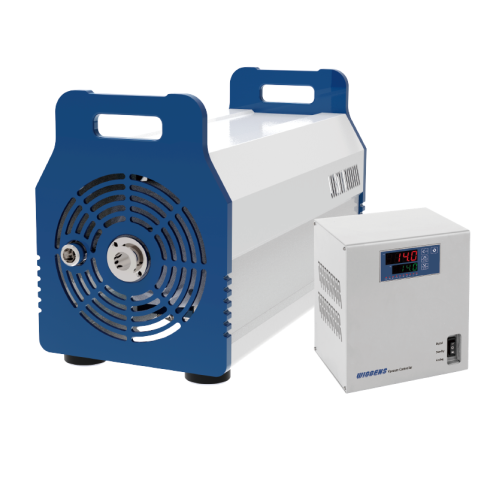

Chemical Resistant Diaphragm Pump (Diaphragm Vacuum Pump) C2000EEF Wiggens Price in Bangladesh

Chemical Resistant Diaphragm Pump (Diaphragm Vacuum Pump) C2000EEF Wiggens Germany

0 Customer Review

Availability: Call For Price
Brand: Weggens Germany

Highlights

Flow rate [m3 /h] at atm. pressure 16.2
Flow rate [l/min] at atm. pressure 270
Ultimate vacuum [mbar abs.] ＜ 70
Max. Power P [W] 750
Motor speed [rpm] 0~1380
Pump head Single stage
Hose connections of inlet KF25 1)
Hose connections of outlet G1/2 1)
Noise [dB] 60
Dimensions W x D x H [mm] 615×285×386
Weight [kg] 41
Power supply 200 - 240V, 50/60Hz

View More Info

Call For Price

Product Details
Review & Comments

Chemical Resistant Diaphragm Pump (Diaphragm Vacuum Pump) C2000EEF Wiggens Germany

Chemical resistant diaphragm pumps are ideally suited for pumping aggressive gases and vapors in a vacuum range down to 1mbar.

Features

> All wetted parts are made of chemical resistant materials
> Variable frequency motor for fast pumping speed
> Low noise
> Overheat protection
> Vacuum can be controlled by manual valve, vacuum controller or variable frequency controller
> Easy and convenient for maintenance

Specifications

Model / Specifications	C2000EEF
Order No.	W1032011
Flow rate [m3 /h] at atm. pressure	16.2
Flow rate [l/min] at atm. pressure	270
Ultimate vacuum [mbar abs.]	＜ 70
Max. Power P [W]	750
Motor speed [rpm]	0~1380
Pump head	Single stage
Hose connections of inlet	KF25 1)
Hose connections of outlet	G1/2 1)
Noise [dB]	60
Dimensions W x D x H [mm]	615×285×386
Weight [kg]	41
Power supply	200 - 240V, 50/60Hz
