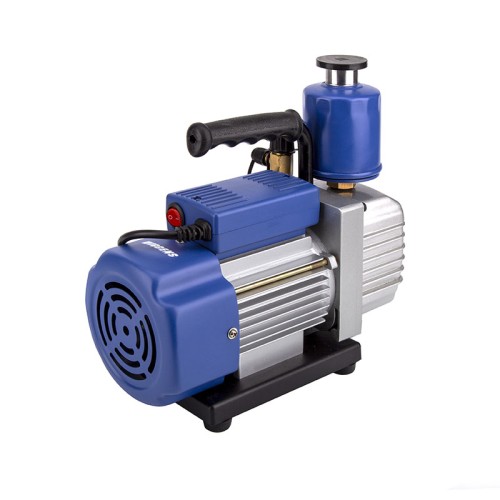

Rotary Vane Vacuum Pump (Vacuum Pump/Pressure Pump) R-8SN Wiggens Germany
Oil-sealed Rotary Vane vacuum pumps are widely
used traditional vacuum pumps in research and production, which can be used
independently, or serve as backing pumps for molecular pumps or diffusion
pumps. Wiggens' direct driven rotary vane pumps are available as one and
two-stage versions, covering the range from desktop lab pumps to production
line pumps, with low noise and stable working temperature for common voltages
and frequencies, long lifespan, and outstanding reliability for chemical
applications. Various application areas may include vacuum distillation, vacuum
filtration, vacuum inspection, vacuum freeze drying, vacuum coating, vacuum
leak detection, vacuum packaging, vacuum adsorption, etc.
Features
> Compact structure
> Very good sealing
> No returning throughput
> Oil-spout prevention
> Low noise
> Oil-observation window
> Handle for easy transportation
> High flow rate
> Low and stable ultimate vacuum
> High evaporation resistance
> Comparatively high chemical resistance
> High longevity
> Low maintenance rate
> Low oil mist
> Gas ballast valve
> Overcurrent protection
Application
> Vacuum distillation
> Vacuum filtration
> Vacuum testing
> Vacuum freeze drying
> Vacuum plating
> Leak detection
> Vacuum packaging
> Vacuum sorption
> As a backing pump for turbo-molecular pumps or diffusion pumps
Specifications
|
Model
|
R-8SN
|
|
Order No.
|
900102
|
|
Flow rate [m3 /h] at atm. pressure
|
7.2
|
|
Flow rate [L/min] at atm. pressure
|
120
|
|
Ultimate vacuum [mbar abs.]
|
2.5 × 10-2
|
|
Max. Power P [W]
|
250
|
|
Motor speed [rpm]
|
1400
|
|
Hose connections of inlet
|
SAE 3/8”/ UNF 7/16-20
|
|
Hose connections of outlet
|
DN25KF
|
|
Oil filling volume [L]
|
0.33
|
|
IP code
|
IP40
|
|
Noise [dB]
|
54
|
|
Dimensions W x D x H [mm]
|
314×288×142
|
|
Weight [kg]
|
11
|
|
Power supply
|
220V/50Hz
|
