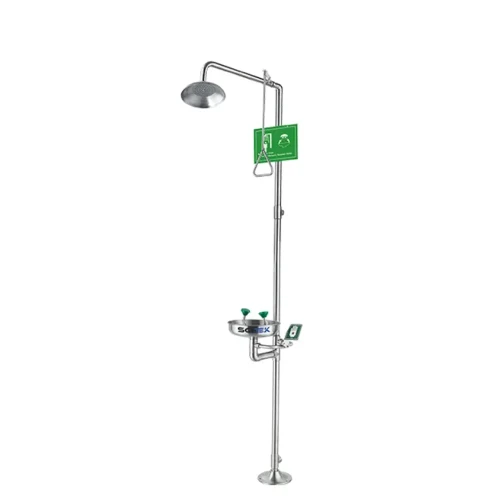

Combined Emergency Shower & Eye Wash, SS304 Ball Valve EW-CS2 Scitek Global

Product Description

Combined Emergency Shower & Eye Wash Specifications:

Model	EW-CS2
Material	Stainless Steel 304
Shower & Eye Wash Switch	SS304 ball valve
Shower Head	Spinning-formed with curled rim, diameter 250 mm
Pipe Diameter	42 mm
Nominal Pressure	1.0 Mpa
Working Pressure	0.2~0.4 Mpa
Testing Pressure	1.5 Mpa
Temperature Requirement on Working Environment	0°C~40°C
Flow Rate of Body Shower	≥76 L/min
Flow Rate of Eye/Face Wash	≥11.4 L/min
Flow Rate of Eye Wash	≥1.5 L/min
Inlet Thread	Rc 1", female
Outlet Thread	Rc 1", female
Inlet Height (From above the Floor)	1540 mm
Outlet Height (From above the Floor)	100 mm
Distance Between Spray Heads	170 mm
Package Size(W×D×H)(mm)	1020x350x220
Gross Weight	14.5kg

N

NNotes : The inlet parts and outlet parts are customizable; shutoff valve and filter are proposed to be equipped on the water-supply end; stainless steel – made foot treadle is optional as eye wash switch.

Combined Emergency Shower & Eye Wash Feature:

1. Surface finishing : fine-polished, which makes the pipe surface performs better on corrosion resistance

2. Usage: drenching body and rinsing faces / eyes can be operated separately or simultaneously

3. Eyewash bowl features: 300 mm in diameter, vertical bowl-wall design, allows better water collecting and anti-splashing

4. Dust cover: integrated with the spray head (not connected by chain)

5. Spray head feature: patented design, each spray head equips with one water - flow control valve

6. Water pattern coverage: at the height of 1524 mm above floor, the water pattern covers a circular area of at least 510 mm in diameter
