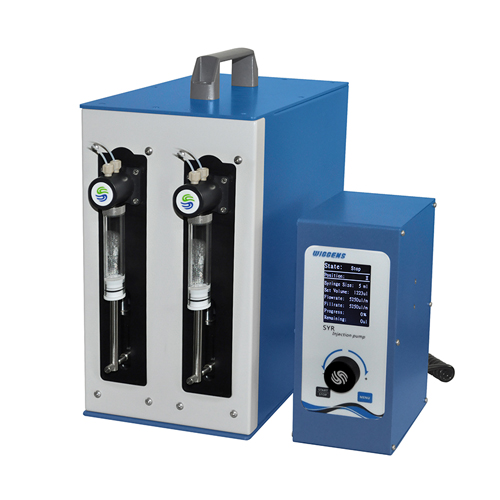

Dual Position Vdose Syringe Pump Flow Rate 1.25 μl/min~375 ml/min Model: Vdose4400  Wiggens Germany

The standard syringe pump includes injection element and controller, and the injection element can be single-channel or dual-channel. Vdose serial syringe pump can carry out accurate liquid transmission automatically. The system is also programmable with a PC to realize more complicated liquid dosing operations.
> Bright TFT display can show the dosing parameters clearly on one screen
> 9 types of syringes can be selected, from 50µl~25mL, it is easy to change the syringes
> Dosing speed: from 1.25uL/min to 375mL/min
> All parts contacted with the liquid are glass or PTFE, which guarantees the chemical resistance
> The three port valve can switch automatically to complete the repeating withdrawing and dosing
> The valve ports can be configured for convenient liquid recovery without taking part the tubing
> RS-232/485 digital communication ports available for remote PC or PLC control

Specifications

Model		Vdose4400
Number of dosing channel		Dual Position
Flow Rate		1.25 µL/min~375 mL/min
Precision		≤ 5 ‰
Weight (kg)		9.1
Outer Dimensions (H x W x D mm)		305 x 178 x 330
Syringe	Size	50µl~25 mL
	Material	Glass and Teflon wetted
	Dispense Resolution	1/6000 of the syringe size in use
	Feature	Easily interchangeable
Valve	Material	PTFE
	Feature	3 to 8 selectable ports
Interface Port		RS232 / 485
Power supply		110~240V,50/60Hz
Order No.		V900704

Order Information

Order No.	Description
V900705	Single Position Syringe pump, with dosing unit and controller (need to specify the valve ports and glass syringe volume)
V900704	Dual Position Syringe pump, with dosing unit and controller (need to specify the valve ports and glass syringe volume)
Accessories
V900700-5	50µL glass syringe with Teflon plunger
V900700-6	100µL glass syringe with Teflon plunger
V900700-7	250µL glass syringe with Teflon plunger
V900700-8	500µL glass syringe with Teflon plunger
V900700-9	1mL glass syringe with Teflon plunger
V900700-10	2.5mL glass syringe with Teflon plunger
V900700-11	5mL glass syringe with Teflon plunger
V900700-12	10mL glass syringe with Teflon plunger
V900700-13	25mL glass syringe with Teflon plunger
PTFE Tubing and Fittings
V900700-19	Tubing Length: 6m; Outer Diameter: 1/8”; Includes: 6 nuts and 6 ferrules
V900700-20	Tubing Length: 30m; Outer Diameter: 1/8”; Includes: 6 nuts and 6 ferrules
V900700-21	Tubing Length: 6m; Outer Diameter: 1/16”; Includes: 6 nuts and 6 ferrules
V900700-22	Tubing Length: 30m; Outer Diameter: 1/16”; Includes: 6 nuts and 6 ferrules& Reviews (0) : Get specific details about this product from customers who own it. Write your review Rating:  Bad           Good Continue Related Product Multi-Position Filtration Manifolds Filter Diameter (mm)：47/50 Model:BioVac343 Wiggens Germany 0৳ Multi-Position Filtration Manifolds Filter Diameter (mm)：47/50 Model:BioVac345 Wiggens Germany 0৳ Multi-Position Magnetic Filtration Manifolds Filter Diameter (mm)：47/50 Model:BioVac351 Wiggens Germany 0৳ Multi-Position Magnetic Filtration Manifolds Filter Diameter (mm)：47/50 Model:BioVac353 Wiggens Germany 0৳ Multi-Position Stainless Steel Filtration Manifolds Filter Diameter (mm)：47/50 BioVac641/643/645 Wiggens Germany 0৳ Multi-Position Magnetic Filtration Manifolds Filter Diameter (mm)：47/50 BioVac651/653/655 Wiggens Germany 0৳ Borosilicate Glass Multi-Position Filtration Manifolds Filter Diameter (mm)：47/50 BioVac663/664 Wiggens Germany 0৳ Peristaltic Pump Power supply:100-240V,Capacity:37W Model: Vdose® PRO Wiggens Germany 0৳ Portable Suction Unit (Aspirator) Power:25W,Ultimate Vacuum:100mbar Model: BioVac 225 Wiggens Germany 0৳ Portable Suction Unit (Aspirator) Power:25W Ultimate Vacuum:100mbar Model: BioVac 235 Plus Wiggens Germany 0৳ Portable Suction Unit (Aspirator) Power:25W Ultimate Vacuum:80mbar Model: BioVac 240 Plus Wiggens Germany 0৳ Digital Hot Plate / Stirrer Maximum temperature setting:350℃ Model: WH210 Wiggens Germany 0৳ Digital Hot Plate / Stirrer Maximum temperature setting:380℃ Model: WH220 Wiggens Germany 0৳ Digital Hot Plate / Stirrer Maximum temperature setting:300℃ Model: WH620 Wiggens Germany 0৳ Multi-position magnetic Hot Plate / Stirrer Maximum temperature setting:450℃ Model: WH420R-L Wiggens Germany 0৳ Multi-position magnetic Hot Plate / Stirrer Maximum temperature setting:450℃ Model: WH420R-D Wiggens Germany 0৳ Infrared Hot Plate / Stirrer Maximum temperature setting: 380℃ Model: WH260-AH Wiggens Germany 0৳ Infrared Hot Plate / Stirrer Maximum temperature setting: 450℃ Model: WH260-NH Wiggens Germany 0৳ Infrared Hot Plate / Stirrer Maximum temperature setting: 450℃ Model: WH260-RL Wiggens Germany 0৳ Infrared Hot Plate / Stirrer Maximum temperature setting: 450℃ Model: WH280-H Wiggens Germany 0৳ Infrared Hot Plate / Stirrer Maximum temperature setting: 450℃ Model: WH280-RL Wiggens Germany 0৳ Infrared Hot Plate/Stirrer Heat output: 1200W Maximum temperature setting: 550℃ Model: WH380 Wiggens Germany 0৳ LED display Hot Plate / Stirrer (Digital) Heat output [W]:680 Model: WH200D-1K Wiggens Germany 0৳ LED display Hot Plate / Stirrer (Digital) Heat output [W]:1500 Model: WH200D-3K Wiggens Germany 0৳ Soxhlet Extraction 6-position Heating Plate Max. Temperature：425℃ Model: WH-106 Wiggens Germany 0৳ Magnetic Stirrer With LED display Speed setting range:150~1500rpm,Weight:1.8kg Model: WH-210D Wiggens Germany 0৳ stainless steel Magnetic Stirrer Speed setting range:150~1500rpm,Weight:2.5kg Model: WH-410D Wiggens Germany 0৳ Magnetic Stirrer With LED display Speed setting range:150~1500rpm,Weight:2.5kg Model: WH-610D Wiggens Germany 0৳ Submersible Magnetic Stirrer Dimensions W x D x H [mm]：70 x70 x28 Model: S-1 Wiggens Germany 0৳ Submersible Magnetic Stirrer Speed setting range [rpm]：100~1500 Model: CS-1 Wiggens Germany 0৳ Call Now WhatsApp Quick Delivery Fastest Delivery within Time Quality Assurance Delivering Uncompromising Quality Safe Payment Product Online Payment Purchase Protection Your Trust, Our Responsibility Offers Quote Home Contact Login
