Soxhlet Extraction 6-position Heating Plate Max. Temperature：425℃ Model: WH-106 Wiggens Price in Bangladesh

Soxhlet Extraction 6-position Heating Plate Max. Temperature：425℃ Model: WH-106 Wiggens Germany

0 Customer Review

Availability: Call For Price
Brand: Weggens Germany

Highlights

Heating plate 6×Ø85mm diameter cast-iron with embedded heating resistor
Safety Each top plate is surrounded by a rim that protect electronics from spills.
Spacing of SSmm between the heating plate which is according to DIN 44548.
Max. Temperature 425℃
Control Each heating plate is controlled independently
Power supply 6×450W

View More Info

Call For Price

Product Details
Review & Comments

Soxhlet Extraction 6-position Heating Plate Max. Temperature：425℃ Model: WH-106 Wiggens Germany

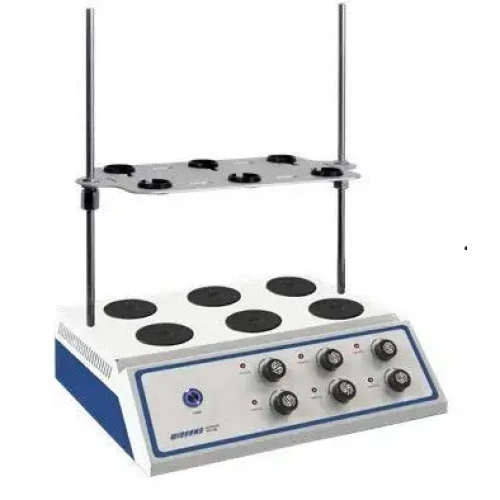

The design concept of WH-106 is compactness, safety and efficiency. For compactness, the layout of hotplates has been changed from traditional 6 holes in one row to 3 each in 2 rows, so that we can save 50% operating space. The distance between each hole is 55mm which is in accord with DIN 44548 and wide enough for users to handle the samples in back row conveniently. WH-106 contains six embedded heating plates with 85mm diameter, and its heating components are made in Germany, rugged and easy to maintain. Each plate with a heating indicator is controlled independently, and the temperature can reach 425℃ . For safety reason, each plate is surrounded by a rim for keeping electronics from spilling. The whole housing is made of stainless steel with paint coating.

Applications
> COD digestion
> Lipid extraction
> Kinds of heating

Specifications

Modle	WH-106
Heating plate	6×Ø85mm diameter cast-iron with embedded heating resistor
Safety	Each top plate is surrounded by a rim that protect electronics from spills. Spacing of SSmm between the heating plate which is according to DIN 44548.
Max. Temperature	425℃
Control	Each heating plate is controlled independently
Power supply	6×450W
Order No.	178106
