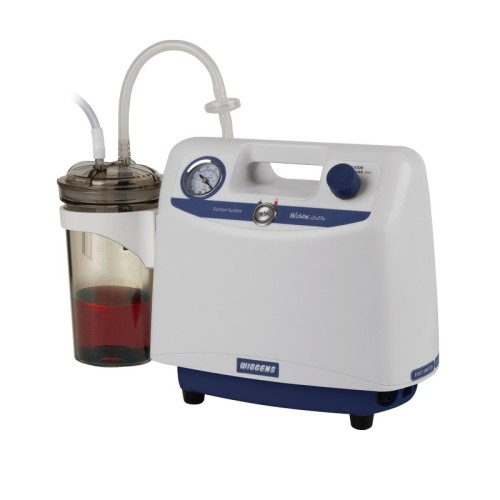

Portable Suction Unit (Aspirator)  Power:25W,Ultimate Vacuum:100mbar Model: BioVac 225 Wiggens  Germany

Double overflow protection
A built-in float switch plus 0.2 µm PTFE hydrophobic disc filter between the suction bottle and the pump prevent the medium and bacteria from flowing into the pump.

Autoclavable
Waste bottles and disc filters are autoclavable.
> The whole unit is made of of ABS plastic and aluminum alloy.
> Various precision elements are developed, and assembled through long time test.
> Piston pump inside offers low noise, and it is wear-resistant, polution-free, maintenance-free.

Double Protection Against Liquid Overflow
> Waste bottle, floating ball
> 0.2 µm PTFE disc filter
> Protection against liquid overflow
> Keeps liquid from entering the pump.

High-Temperature Sterilization
Waste bottle and disc filter can resist high[1]temperature and high-pressure sterilization.

Employment of an Oil-Free Vacuum Pump
The oil-free vacuum pump is maintenance-free, features a very low noise level and high-pressure sterilization and works stably.

Vacuum Regulator
Deliver the correct vacuum for various applications.

Stable and Durable Casing
The casing is made of ABS material, which is light and easy to clean.

Wire Storage Box
The system provides a storage for the foot switch wire, which makes it easy and convenient to use.

Application
> Biochemical cultivation
> Separation of culture fluids
> Waste liquid suction in cell cultivation
> All kinds of waste liquid suction in laboratory environments

Specifications

Order No.	W1080225
Model series	BioVac 225
Power [W]	25
Ultimate Vacuum [mbar]	100
Max. Flow Rate [L/min]	25
Foot Switch	--
Dimensions [cm]	37 × 15 × 25
Suction bottle	1000mL X 1
Weight [kg]	4.3
Accessories included	Single-branch stainless steel suction head
