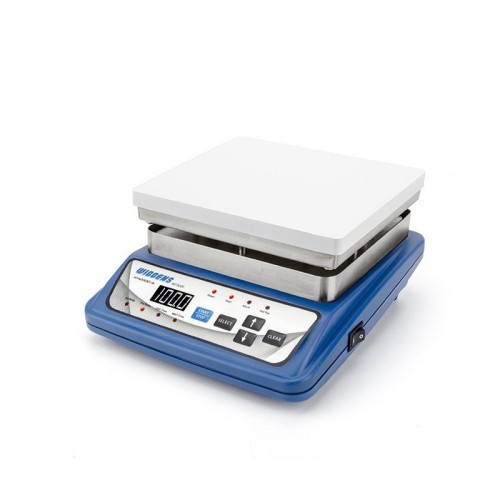

LED display Hot Plate / Stirrer (Digital) Heat output [W]:680 Model: WH200D-1K Wiggens Price in Bangladesh

LED display Hot Plate / Stirrer (Digital) Heat output [W]:680 Model: WH200D-1K Wiggens Germany

0 Customer Review

Availability: Call For Price
Brand: Weggens Germany

Highlights

Maximum temperature setting 300
Maximum temperature setting with E-sensor [℃] 300
Temperature stability [℃]* ±1
Heat output [W] 680
External temperature sensor Pt100
Temperature display LED display
Temperature setting Turning knob
Top plate material Aluminum coated with ceramic
Top plate dimensions [mm] 170×170
Dimensions W x D x H [mm] 240 x280 x70
Weight [kg] 2.5
Power supply 220V/50Hz

View More Info

Call For Price

Product Details
Review & Comments

LED display Hot Plate / Stirrer (Digital) Heat output [W]:680 Model: WH200D-1K Wiggens Germany

> PID temperature control technology for accurate and reliable results
> Suitable for complicated temperature control requirements
> Bright LED screen can display both set value and actual temperature
> Convenient temperature setting via on-touch control
> Timer function for automatic heating up to 100 hours
> Alarm signal output which can be applied to stop the operation of the hot plate and other connected devices
> External Pt100 temperature sensor connection for direct and precise control of the actual sample temperature

Specifications

Model	WH200D-1K
Order No.	400110
Maximum temperature setting	300
Maximum temperature setting with E-sensor [℃]	300
Temperature stability [℃]*	±1
Heat output [W]	680
External temperature sensor	Pt100
Temperature display	LED display
Temperature setting	Turning knob
Top plate material	Aluminum coated with ceramic
Top plate dimensions [mm]	170×170
Dimensions W x D x H [mm]	240 x280 x70
Weight [kg]	2.5
Power supply	220V/50Hz

*Measured with 500ml water at 80 ℃
Standard package includes: hot plate, thermocouple sensor PT100-01 with holder and clamp
