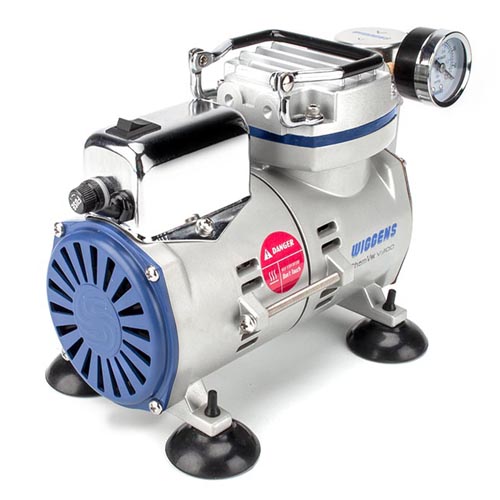

Chemvak
V series vacuum pump is a piston-powered, oil-free pump. With innovative
electronic, mechanical technology and human design concept make, compact and
light weight, clean and maintenance free, safe and comfortable.
No air pollution, maintenance free
Chemvak V series pumps are driven by Piston, without the need of lubricant,
regular oil changes and maintenance; with no oil pollution.
Moisture
trap with filter cartridge
Chemvak V series pumps are equipped with filter cartridge in air inlet to
filter particle and moisture to prolong the life of pump.
Oil-free
The
oil-free piston vacuum pump provides continuous, reliable, high flow vacuum for
your container.
Vacuum
regulator
Chemvak V series pumps are equipped with vacuum regulator to adjust vacuum.
Every motor of Chemvak V series pumps has a built-in thermal protection device
to shut off the pump automatically when overheated and then resume working when
the temperature cools down.
-Biology
laboratories
-Food industry
-Microbiological detection
-Vacuum extraction
-Liquid filtration
-Vacuum drying
-Suspended solids measurement
|
Model |
V300 |
|
Power（V / Hz） |
220 / 50 |
|
Max. power（W） |
60 |
|
Max. current（A） |
0.3 |
|
Max. vacuum
(mbar) |
100 |
|
Max. flow rate
(L/min) |
17 |
|
Motor rotation
(RPM) |
1450 |
|
Port thread
(mm) |
9 |
|
Dimension
WxDxH(mm) |
272x142x165 |
|
Weight (kg) |
4.4 |
|
Noise level
(dB) |
50 |
|
Order No. |
167300-22 |
