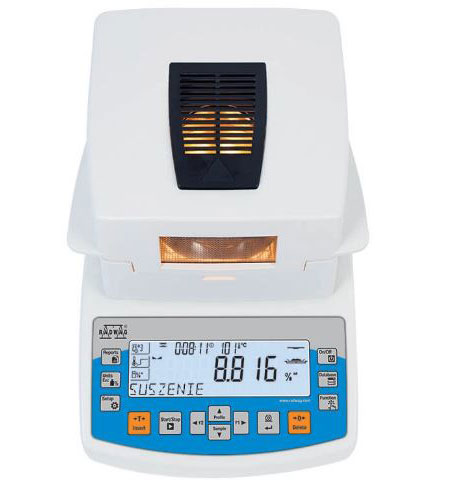

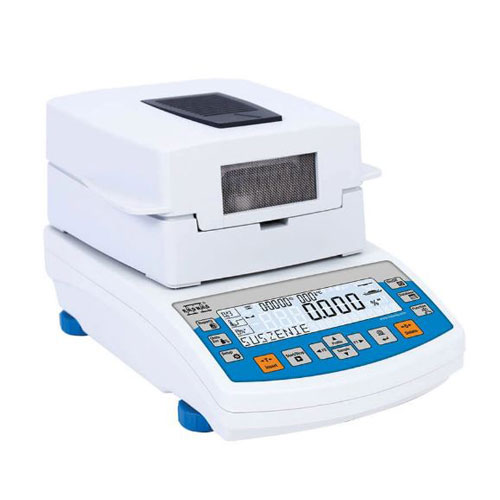

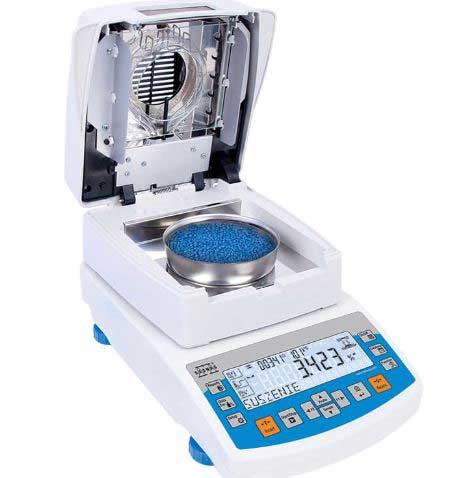

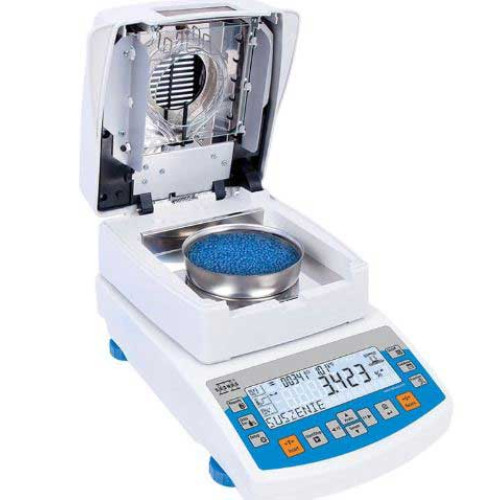

Moisture Analyzer 1mg-50g MA 50.R.WH Radwag Poland
Moisture
analyzer is a laboratory measuring instrument intended to determine relative
humidity for small samples of different materials. MA.R series redefines
moisture analyzers standards.
The MA.R series:
This
series has been equipped with brand new readable LCD display providing an extra
text line for information such as supplementary messages and data, e.g. product
name or tare value.
The
moisture analyzer, using respective pictograms, signalizes currently activated
mode, computer connection and functions, both balance and service ones.
The
MA.R series is enriched with various interfaces: RS232, USB type A,
USB
type B and Wi-Fi®. The moisture analyzer is housed in a plastic casing.
Databases:
Information
system of R series moisture analyzers is based on 6 databases, allowing many
operators to operate product database comprising many samples. Collected
measurements may be subjected to subsequent analysis.
- Collected data is
registered in 6 databases:
- Users (up to 10 users)
- Products (up to 1000
products)
- Weighings (up to 1000
weighings)
- Tares (up to 100 tares)
- Programs (up to 100 drying
programs)
- Drying process reports (up
to 1000 reports)
The
results:
The
results obtained using the moisture analyzer (the final result of the drying
process):
- % M –
the mass loss in %; displays the mass change recorded during the drying
process, expressed as a percentage,
- % D –
the dry mass obtained during the drying process, expressed as a percentage; the
result is the portion of the sample that remains on the weighing pan after the
moisture has evaporated,
- % R –
the ratio of moisture content to dry mass, obtained during the drying process,
expressed as a percentage; the result is the portion of the sample that
evaporated during the drying process,
- g – the
sample mass after drying.
Exchange
of information within the system is performed by means of USB port on
bi-directional basis. It is possible to import and export databases using
memory sticks.
Direct access to information:
It is possible to access functions and databases directly, using keyboard soft keys.
- Database – access to databases
- Function – access to basic functions
- F1 and F2 – programmable function keys and menu navigation keys
- Reports – access to database of drying process reports
- Profile – access to parameters settings
- Sample – access to products database
Specification:
Metrological
parameters
Maximum capacity
[Max] 50 g
Readability [d] 1
mg
Tare range -50 g
Adjustment
external
Maximum sample
weight 50 g
Heating module
halogen
Moisture content
repeatability +/-0,05% (sample ~ 2g), +/-0,01% (sample ~ 10g)
Moisture content
readability 0,001%
Drying
temperature range max 250 °C
Physical
parameters
Leveling system
manual
Display LCD
(backlit)
Protection class
IP 43
Weighing pan
dimensions ø90, h= 8 mm
Packaging
dimensions 476×381×346 mm
Net weight 5 kg
Gross weight 6 kg
Communication
interface
Communication
interface RS232¹, USB-A, USB-B, Wi-Fi
Electrical
parameters
Power supply 100V
– 120V AC 50/60Hz or 200V-240V AC 50/60Hz
Power consumption
4 W
Heating module
power 450 W
Environmental
conditions
Operating
temperature +10 ÷ +40 °C
Features of use
Drying method 4
drying profiles (standard, fast, step, mild)
Finish mode 4
modes (automatic, manual, time-defined, user-defined)
Additional
functions sample traceability
