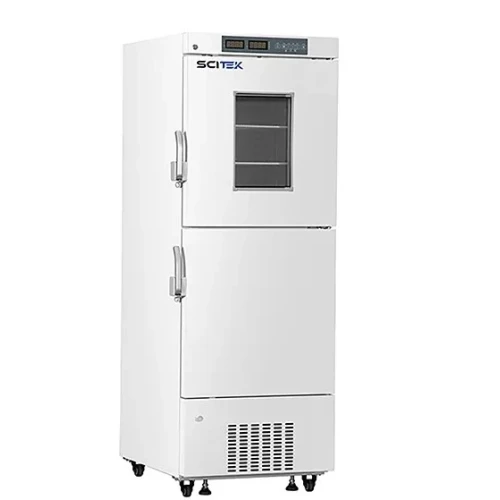

-25°C Combination Refrigerator/Freezer Scitek Global
Features
1. Clear LED screen and control panel support easy display and
operation.
2. Lockable universal caster wheels.
3. Inner doors or drawer design makes separated storage possible.
4. Eco friendly CFC-free refrigerant also save energy.
5. Coil evaporator for better performance & easy maintenance.
Reliabily
1. Audible buzzer and visible flashing temperature alarm system for
High/low temperature, power failure, sensor error, door ajar, thermostat
failure alarm.
2. Safety password protected control panel prevents unauthorized
system modification.
3. Door lock for storage safety.
Specification
|
Feature
|
RFZ-25V300
|
RFZ-25V370
|
RFZ-25V530
|
|
Capacity (L)
|
R: 198
| F: 102
|
R: 183
| F: 185
|
R: 273
| F: 255 (Total: 528)
|
|
Int. Size (mm)
|
R:
565x480x759
F: 461x465x600
|
R:
580x626x625
F: 466x636x625
|
R: 765x640x635
F: 651x636x635
|
|
Ext. Size (mm)
|
650x620x1980
|
720x830x1870
|
900x818x1870
|
|
Refrigerant
|
R290
|
R600a
& R290
|
R290
|
|
Compressor (Qty)
|
China
Brand / 2
|
China
Brand / 2
|
CUBIGEL
/ 2
|
|
Display
|
Digital
|
Dual
Independent Digital
|
Dual
Independent Digital
|
|
Shelves / Drawers
|
2
Shelves / 3 Drawers
|
3
Shelves / 6 Drawers
|
3
Shelves / 9 Drawers
|
|
Power (W)
|
349 W
|
363 W
|
431 W
|
|
N.W. / G.W. (kg)
|
100 /
120
|
130 /
170
|
168 /
188
|
|
Shipping (mm)
|
720x695x2015
|
780x920x2000
|
921x960x1950
|
|
Noise / USB / Port
|
49 dB |
No USB | No Port
|
50 dB |
USB Std | Port Std
|
50 dB |
USB Std | Port Std
|
Specifications
(All Models):
•

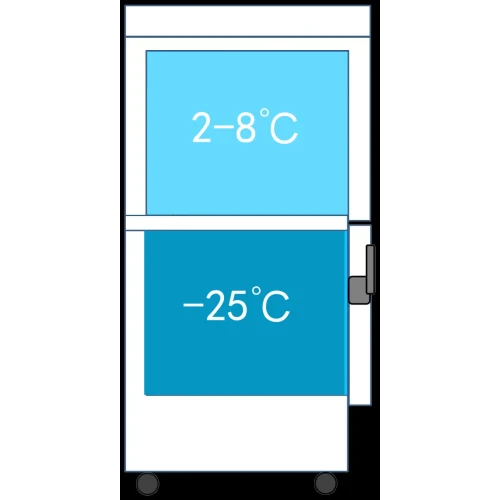

Temp Range: Freezer: -10 ~ -25℃ | Fridge: 2 ~ 8℃ (at RT 10~32℃)
• System: NTC Sensor | Microprocessor Controller | Manual Defrost
• Alarms: High/Low Temp, Sensor Error, Door Ajar | 8h Power Failure Backup
• Build & Add-ons: SPCC Sprayed Steel External | Standard Casters |
Optional Data Logger
• Electricity: AC 110/220V ± 10%, 50/60Hz
• Test Hole: 2 Qty (25mm for V370/V530)
