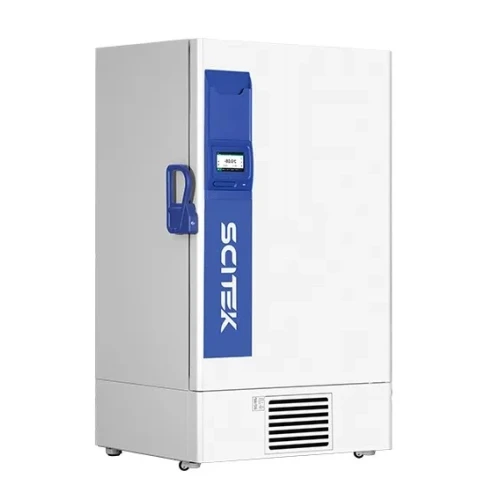

Economical -86°C Ultra Cold Freezer Scitek Global
Features
1.
High-performance V.I.P. (Vacuum
Insulation Panel) insulation panels are used to minimize cabinet heat gain and
improve temperature stability.
2.
Efficient cooling system operates the
mixed refrigeration system for rapid and stable cooling, while being energy-saving
and easy to maintain.
3.
The inner door has a unique design
that separates storage compartments and minimizes frost buildup inside the
chamber.
4.
Upright door with limit door hinge
prevents collision when door opens.
5.
Lockable universal caster wheels for
easy moving. Removable inner door for user to defrost and clean.
Reliability
1.
Safety password protected control
panel prevents unauthorized system modification.
2.
Audible buzzer and visible flashing
temperature alarm system for High/low temperature,Sensor error, Thermostat
failure alarm, power failure alarm, door switch, ambient temperature alarm,
condenser failure alarm, filter check alarm, voltage abnormal alarm, low
battery alarm.
3.
Door lock for storage safety.
Specification
|
Model
|
UFZ-86V60E
|
|
Capacity
|
58 L
|
|
Internal Size (WxDxH)
|
330 × 453 × 410 mm
|
|
External Size (WxDxH)
|
635 × 757 × 1212 mm
|
|
Temperature Range
|
-40°C ~ -86°C (at RT
10~32°C)
|
|
Sensor / Controller
|
PTC / Microprocessor
|
|
Refrigerant
|
R4001 (CFC Free)
|
|
Defrost / Compressor
|
Manual / SECOP (1
Qty)
|
|
Display Type
|
Digital display
|
|
Alarms
|
High/Low temp, High
ambient temp, Sensor error, Abnormal voltage, Low battery, Door ajar, 72h
Power failure backup
|
|
Materials (Int/Ext)
|
Stainless steel 304 /
Electro-galvanized steel with antimicrobial powder coating
|
|
Inner Door Material
|
Stainless steel,
grade 304
|
|
Accessories (Std)
|
USB port, Casters,
Remote alarm port, 25mm Test hole
|
|
Accessories (Opt)
|
Data logger, Backup
system (CO₂/LN₂)
|
|
Shelves / Drawers
|
1 Shelf
|
|
Frozen Racks (Qty)
|
2 Racks (6 × 3)
|
|
Storage Boxes
|
24 Boxes (2 Inches)
|
|
Sample Capacity
|
2,400 Samples (2ml)
|
|
Sound Emission
|
50 dB
|
|
Power Supply
|
AC 110/220V ± 10%,
50/60Hz
|
|
Power Consumption
|
6.09 KWh / 24h
|
|
Weight (N.W. / G.W.)
|
115 Kg / 155 Kg
|
|
Shipping Dimensions
|
730 x 845 x 1400 mm
|
