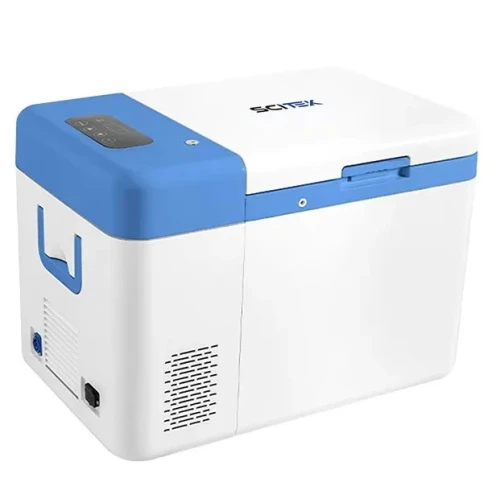

Portable Ultra-low Temperature Freezer Scitek Global
Features
1.
Wide temperature range application
(from 25°C to -86°C )
2.
Precision temperature control
3.
Uniform internal temperature
(temperature difference at various points within ±1°C)
4.
High efficiency and energy saving
5.
Compatible with multiple power
sources
6.
Easy to operate and maintain
7.
Compact and lightweight (19 kg)
8.
Uses 100% natural refrigerants,
supporting sustainable and environmentally friendly operation
Specification
|
Specification
Parameter
|
FZ-45P25
|
FZ-60P25
|
|
Storage
Capacity
|
25L
|
25L
|
|
Cooling
Engine
|
Free Piston Stirling Cooler
|
Free Piston Stirling Cooler
|
|
Refrigerant
|
Helium (He) (CFC Free)
|
Helium (He) (CFC Free)
|
|
Heat
Transport System
|
Gravity Driven Thermosiphon
|
Gravity Driven Thermosiphon
|
|
Temperature
Range
|
18℃ to -45℃
|
18℃ to -60℃
|
|
Performance
Data (Empty)
|
25℃ to -45℃ in 1.5 hours
|
25℃ to -60℃ in 2.5 hours
|
|
Temperature
Control
|
Target temperature ±1°C
|
Target temperature ±1°C
|
|
Stable
State Energy Cons.
|
30W
|
40W
|
|
Insulation
|
Vacuum insulated panels & foam
|
Vacuum insulated panels & foam
|
|
Inner
Liner Material
|
Food-grade SUS304 Stainless Steel
|
Food-grade SUS304 Stainless Steel
|
|
Noise
Level
|
＜50dB
|
＜50dB
|
|
Control
Sensor
|
One RTD (PT100 Class B, ±0.3)
|
One RTD (PT100 Class B, ±0.3)
|
|
Security
|
Lockable Lid
|
Lockable Lid
|
|
Alarms
|
Setpoint ±10°C (Warm/Cold)
|
Setpoint ±10°C (Warm/Cold)
|
|
Defrost
Method
|
Manual
|
Manual
|
|
Electric
Power
|
100V-240V AC (50/60Hz) / 12V-24V DC
|
100V-240V AC (50/60Hz) / 12V-24V DC
|
|
Internal
Size (WxDxH)
|
300 × 250 × 300 mm
|
300 × 250 × 300 mm
|
|
External
Size (WxDxH)
|
616 × 392 × 455 mm
|
616 × 392 × 455 mm
|
|
Shipping
Size (WxDxH)
|
710 × 480 × 530 mm
|
710 × 480 × 530 mm
|
|
Net
/ Gross Weight
|
