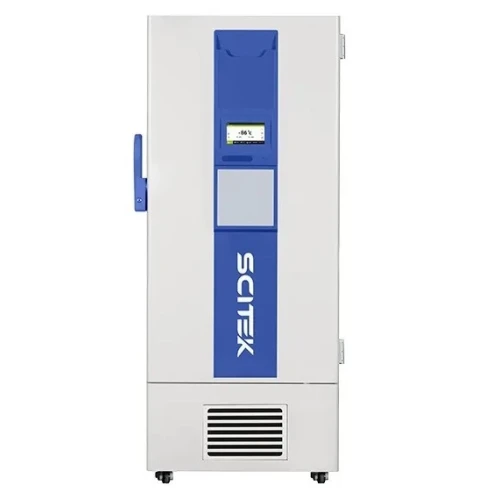

-86°C Ultra Low Temperature Freezer, Dual System Scitek Global
Features
1. There is an added layer of security through the implementation
of two separate cooling systems. Once one system fails, the other can
effectively sustain an inner temperature of -70℃.
2. Accurate microprocessor-controlled system ensures temperature
range of -86℃ to -40℃ for chamber space with 1℃ increment.
3. Powerful cooling system with unique design supports rapidly
temperature decrease.
4. Safety inner door design gives more tight seal for freezer.
Allow users to suit needs together with adjustable shelves.
5. Chamber material made by 304 stainless steel for friendly
cleaning.
Reliability
1. Safety password protected control panel prevents unauthorized
system modification.
2. Audible buzzer and visible flashing temperature alarm system for
high/low temperature, sensor error, thermostat failure alarm, power failure
alarm, door switch, ambient temperature alarm, condenser failure alarm, filter
check alarm, voltage abnormal alarm, low battery alarm
3. Door lock for storage safety
Specification
|
Model
|
UFZ-86V410P
|
|
Capacity
|
408 L
|
|
Internal Size (WxDxH)
|
606×575×1180 mm
|
|
External Size (WxDxH)
|
891×992×1945 mm
|
|
Temperature Range
|
-40°C to -86°C (at RT. 10~32°C)
|
|
Sensor Type
|
PTC
|
|
Controller Type
|
Microprocessor
|
|
Cooling Refrigerant
|
R4001 (CFC Free)
|
|
Defrost Type
|
Manual
|
|
Compressor Qty
|
SECOP / 2
|
|
Display Type
|
LCD display
|
|
Alarms
|
High/Low temperature, High ambient temperature, Sensor error, Abnormal
voltage, Low battery, Door ajar, 72h power failure backup system
|
|
Internal Material
|
Stainless steel, grade 304
|
|
External Material
|
Electro-galvanized steel with antimicrobial powder coating
|
|
Inner Door Material
|
Stainless steel, grade 304
|
|
Standard Accessories
|
USB port, Casters, Remote alarm port, 25mm test hole
|
|
Optional Accessories
|
Data logger, Back up system (CO₂/LN₂)
|
|
Shelves / Drawers Qty
|
Shelves / 3
|
|
Optional Frozen Racks
|
8(5x4) + 8(4x4)
|
|
Optional Frozen Boxes
|
288 Boxes (2 Inches)
|
|
Sample Capacity
|
28800 Samples (2ml)
|
|
Sound Emission
|
53 dB
|
|
Voltage / Frequency
|
AC110/220V±10%, 50/60Hz
|
|
Power Consumption
|
1350 W
|
|
Weight (N.W. / G.W.)
|
285 / 310 kg
|
|
Shipping Size (WxDxH)
|
954×955×2094 mm
|
