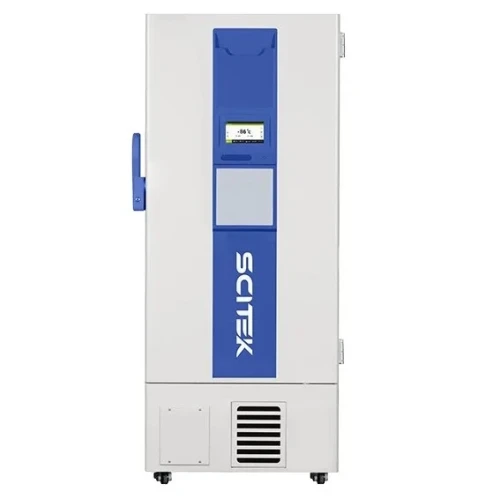

-86°C Ultra Low Temperature Freezer, Manual Defrost Scitek Global
Features
1.
Accurate microprocessor-controlled
system ensures temperature range of -86℃ to -40℃ for chamber space with 1℃ increment.
2.
Powerful cooling system with unique
design supports rapidly temperature decrease.
3.
Safety inner door design gives more
tight seal for freezer. Allow users to suit needs together with adjustable
shelves.
4.
Chamber material made by 304
stainless steel for friendly cleaning.
Reliability
1.
Safety password protected control
panel prevents unauthorized system modification.
2.
Audible buzzer and visible flashing
temperature alarm system for high/low temperature, sensor error, thermostat
failure alarm, power failure alarm, door switch, ambient temperature alarm,
condenser failure alarm, filter check alarm, voltage abnormal alarm, low
battery alarm.
3.
Door lock for storage safety.
Specification
|
Capacity,Model
|
338
L ,UFZ-86V340
|
|
Internal
Size (WxDxH)
|
488
x 607 x 1140 mm
|
|
External
Size (WxDxH)
|
854
x 1072 x 1907 mm
|
|
Temperature
Range
|
-40℃
to -86℃ (at RT 10~32℃)
|
|
Temperature
Sensor
|
PTC
|
|
Controller
Type
|
Microprocessor
|
|
Refrigerant
|
HC
(CFC Free)
|
|
Defrost
Method
|
Manual
|
|
Compressor
Qty / Brand
|
2 /
SECOP
|
|
Display
Type
|
LCD
Display
|
|
Audible
& Visible Alarms
|
High/Low
temp, High ambient temp, Sensor error, Abnormal voltage, Low battery, Door ajar,
72h Power failure backup system
|
|
Internal
Material
|
Stainless
steel, grade 304
|
|
External
Material
|
Electro-galvanized
steel with antimicrobial powder coating
|
|
Inner
Door Material
|
Stainless
steel, grade 304
|
|
Standard
Accessories
|
USB
port, Casters, Remote alarm port, 25 Test hole
|
|
Optional
Accessories
|
Data
logger, Chart Recorder, Back up system (CO₂/LN₂)
|
|
Shelves
/ Drawers Qty
|
Shelves
/ 3
|
|
Frozen
Racks Capacity
|
12
Racks (4x4) | 192 Boxes (2") | 19,200 Samples (2ml)
|
|
Sound
Emission
|
50
dB
|
|
Electricity
/ Power
|
AC
110/220V ±10%, 50/60Hz
|
|
Power
Consumption
|
14.13
KWh / 24h
|
|
Weight
(Net / Gross)
|
286
/ 306 Kg
|
|
Shipping
Size (WxDxH)
|
950
x 1080 x 2190 mm
|
