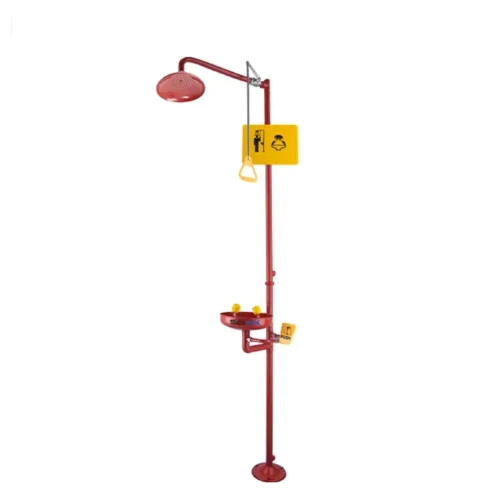

Combined Emergency Shower & Eye Wash, SS304 Ball Valve EW-CS3 Scitek Global

Product Description

1. Combined Emergency Shower & Eye Wash Specifications:

   Model	EW-CS3
   Material	Stainless Steel 304
   Shower Head	Spinning-formed with curled rim, diameter 250 mm
   Pipe Diameter	38mm
   Nominal Pressure	1.0 Mpa
   Working Pressure	0.2~0.4 Mpa
   Testing Pressure	1.5 Mpa
   Temperature Requirement on Working Environment	0°C~40°C
   Flow Rate of Body Shower	≥76 L/min
   Flow Rate of Eye/Face Wash	≥11.4 L/min
   Flow Rate of Eye Wash	≥1.5 L/min
   Inlet Thread	Rp 1", female
   Outlet Thread	Rp 1", female
   Inlet height (From above the Floor)	1186 mm
   Outlet Height ( From above the Floor )	86 mm
   Distance Between Spray Heads	170 mm
   Package Size(W×D×H)(mm)	1245x340x260
   Gross Weight	16.2kg

   Notes : The inlet parts and outlet parts are customizable; shutoff valve and filter are proposed to be equipped on the water-supply end; stainless steel – made foot treadle is optional as eye wash switch.



   Combined Emergency Shower & Eye Wash Feature:

   1.      Surface finishing: Fine polish/high brightness antioxidant coating

   2.      Assembling feature: the "Union" allows easier pipe connection and disconnection

   3.      Usage: drenching body and rinsing faces / eyes can be operated separately or simultaneously

   4.      Eyewash bowl features: 300 mm in diameter, vertical bowl-wall design, allows better water collecting and anti-splashing

   5.      Dust cover: integrated with the spray head (not connected by chain), and easily removed by water flow.

   6.      Spray head feature: patented design, each spray head equips with one water-flow control valve
